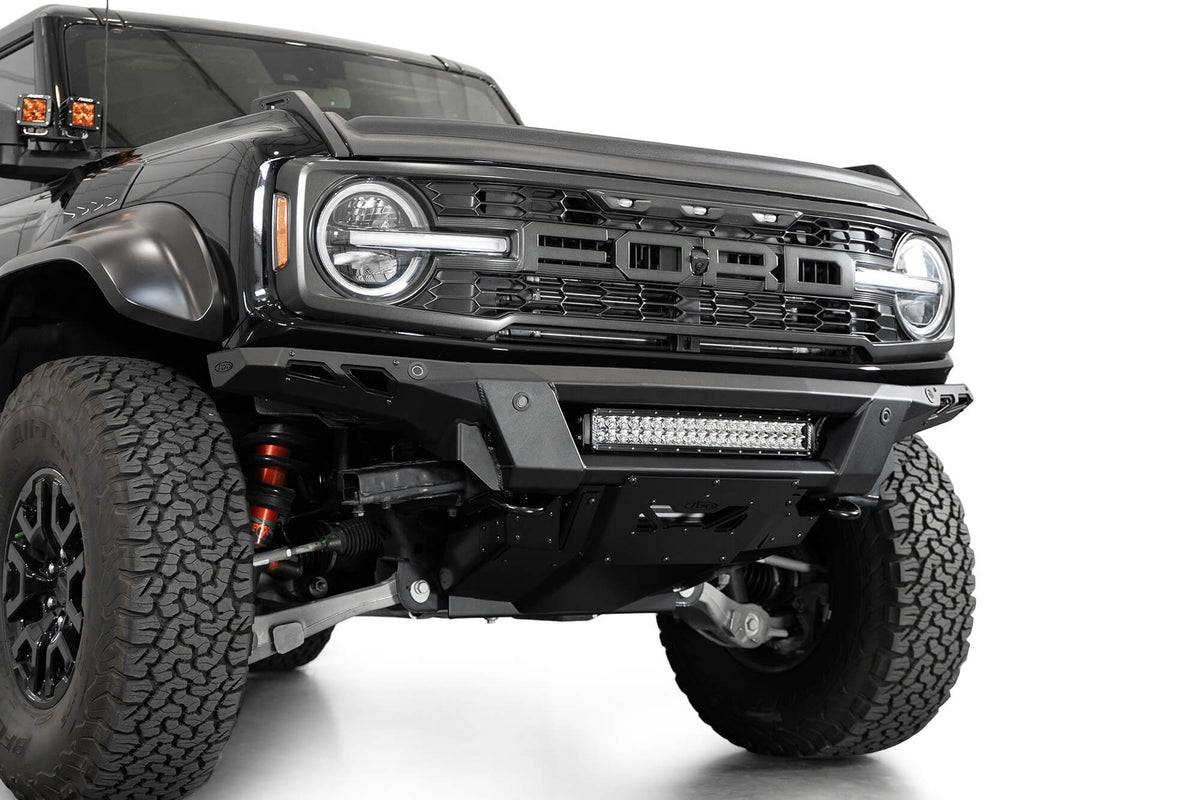

A sharper front end for your Bronco Raptor
The Phantom gives your Bronco Raptor an angular, low-profile steel bumper with lighting recessed into its face. An included aluminium skid plate protects beneath the front end, while the contrasting panels give the whole bumper a deliberate, finished look.
SKU: F260262110103
Protection and a close fit
The included 3/16-inch aluminium skid plate replaces the incompatible factory plate. The steel bumper has two-stage Hammer Black powder coat; the aluminium skid plate and accent panels have Satin Black powder coat.
Choose your off-road lighting
Fit a 20-inch radius LED light bar or five 3-inch light pods in the inset centre mount. It keeps the lamps within the bumper design for a tidy front end. Lamps and wiring are separate.
Recovery equipment and factory features
Factory parking sensors transfer into the bumper. Keeping ACC on an equipped truck requires a separate relocation bracket. Fitting also replaces the original intercooler support brackets with the supplied brackets, reusing the original hardware.
Fitting your bumper
If the sensor bezels do not click into place, their tabs need trimming. You can move your OEM rear tow hooks to the front using the optional arrangement, which requires 9/16-inch frame-hole drilling and separate grade-8 fitting hardware.
Vehicle fitment
| SKU | Make | Model | Years | Details |
|---|---|---|---|---|
| F260262110103 | Ford | Bronco Raptor | 2022-2026 | - |
Applications shown are for North American-spec vehicles.
Talk to us about compatible lighting, recovery equipment and fitting parts for your bumper.
Technical specifications
| Specification | Details |
|---|---|
| Construction | Steel bumper; aluminium skid plate and accent panels |
| Included skid plate | 3/16-inch aluminium; replaces OEM plate |
| Centre lighting | One 20-inch radius LED light bar or five 3-inch pods |
| ACC | Separate relocation bracket required on equipped trucks |
| Intercooler supports | Supplied replacement brackets; original hardware reused |
| Sensor tabs | Trim only if bezels do not click into place |
| Optional recovery points | Reuse OEM rear tow hooks at front; 9/16-inch frame-hole drilling |
| Optional tow-hook hardware | Separate: four 1/2-13 x 1-1/4-inch grade-8 hex bolts, four 1/2-13 nylon lock nuts and eight 1/2-inch flat washers |
| Finish | Hammer Black powder coat |
| Country of manufacture | USA |
Frequently asked questions
Is the aluminium skid plate included?
Yes. The bumper includes the 3/16-inch aluminium replacement for the factory skid plate.
Does the bumper include recovery hooks?
No. You can reuse your OEM rear tow hooks in the optional front mounting arrangement, which requires 9/16-inch drilling and separate fitting hardware.
Is drilling needed for every installation?
No. The 9/16-inch drilling is for the optional OEM tow-hook arrangement. Sensor-tab trimming is also conditional on the bezels not clicking into place.
Do the intercooler brackets stay unchanged?
No. The supplied support brackets replace the originals, using the original hardware.
