| Manufacturer | Nostrum High Performance |
| Product Type | High pressure fuel pump kit |
| SKU | H086-0348 |
| Vehicle Application | Volkswagen / Audi 2.0 EA888, CCTA and CBFA |
| Flow increase over stock | 36% |
| Max operating pressure | 180 bar / 18 MPa / 2610 psi |
| Construction | Fully welded stainless steel |
| Fuel compatibility | E85 compatible |
| Supported potential with matching tune and hardware | 625 whp gasoline, 450 whp E85 |
| Tune required | Yes, custom tune |
| Warranty | Nostrum limited lifetime, manufacturing defects |

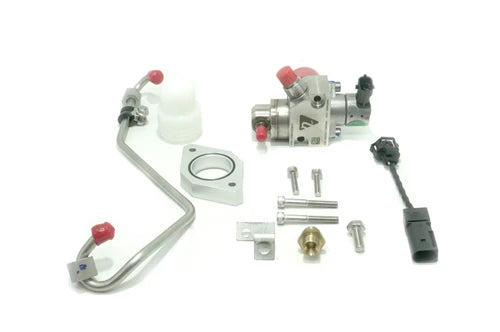

The Nostrum Volkswagen Audi 2.0 TFSI EA888 CCTA/CBFA Standard Bore High Pressure Fuel Pump Kit is the first fuelling upgrade most tuned EA888 Gen 1 and Gen 2 cars actually need. On a Jetta, Passat, Tiguan, CC or Eos, or an Audi A3, A4, A5, Q3, Q5 or TT carrying the CCTA or CBFA engine code, the cam-driven high pressure pump gives up first on a Stage 2 map or an ethanol blend: rail pressure sags at the top of the run and the calibrator pulls timing and boost back to protect it. This pump moves 36% more fuel than the factory unit, runs a larger piston diameter in a fully welded stainless steel body, and is E85 compatible, so it stops deciding how far a map can go. It arrives as a complete kit with the mounting flange, harness adapter and installation guide.
The standard pump was sized for a standard engine on petrol. Add boost, then add ethanol, which needs roughly a third more volume for the same mixture, and it sits flat out for the whole run with nothing in reserve. The extra 36% is what lets the calibration keep commanding rail pressure instead of trimming the engine back.
Standard Bore suits a stock-turbo car on petrol or ethanol and covers the whole CCTA and CBFA range. The Big Bore kit is the Mk6 GTI-specific step above it. On a Rest of World EA888 running CCZA or CCZB, the EA888 ROW pump is the one that bolts up.
Fitment here is decided by the engine code on the block rather than the badge on the boot, so confirm CCTA or CBFA first. A custom tune is required. Check the model and year against the table below, and send Hoonies the details on imported or already-modified cars before ordering.
| Model | Years |
|---|---|
| Audi A3 | 2008-2013 |
| Audi A4 | 2009-2016 |
| Audi A5 | 2010-2017 |
| Audi A6 | 2012-2015 |
| Audi Allroad | 2013 |
| Audi Q3 | 2015-2018 |
| Audi Q5 | 2011-2016 |
| Audi TT | 2009-2015 |
| Volkswagen Beetle | 2012-2013 |
| Volkswagen CC | 2009-2017 |
| Volkswagen Eos | 2009-2016 |
| Volkswagen Jetta | 2008-2014 |
| Volkswagen Passat | 2008-2010 |
| Volkswagen Passat CC | 2009-2010 |
| Volkswagen Tiguan | 2009-2017 |
| Volkswagen Tiguan Limited | 2018 |
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
Yes. Nostrum is clear that a custom tune is required. The pump adds capacity; the calibration turns that capacity into fuelling the engine can use.
It is E85 compatible and the 36% extra flow makes ethanol workable on a standard turbo. Injectors and the low pressure side need to keep up too.
Read the engine code from the block or vehicle data sticker. CCTA and CBFA take this kit; CCZA and CCZB are Rest of World engines and take the ROW pump.
