Finish your Whelen Modified exhaust with a quad-core muffler

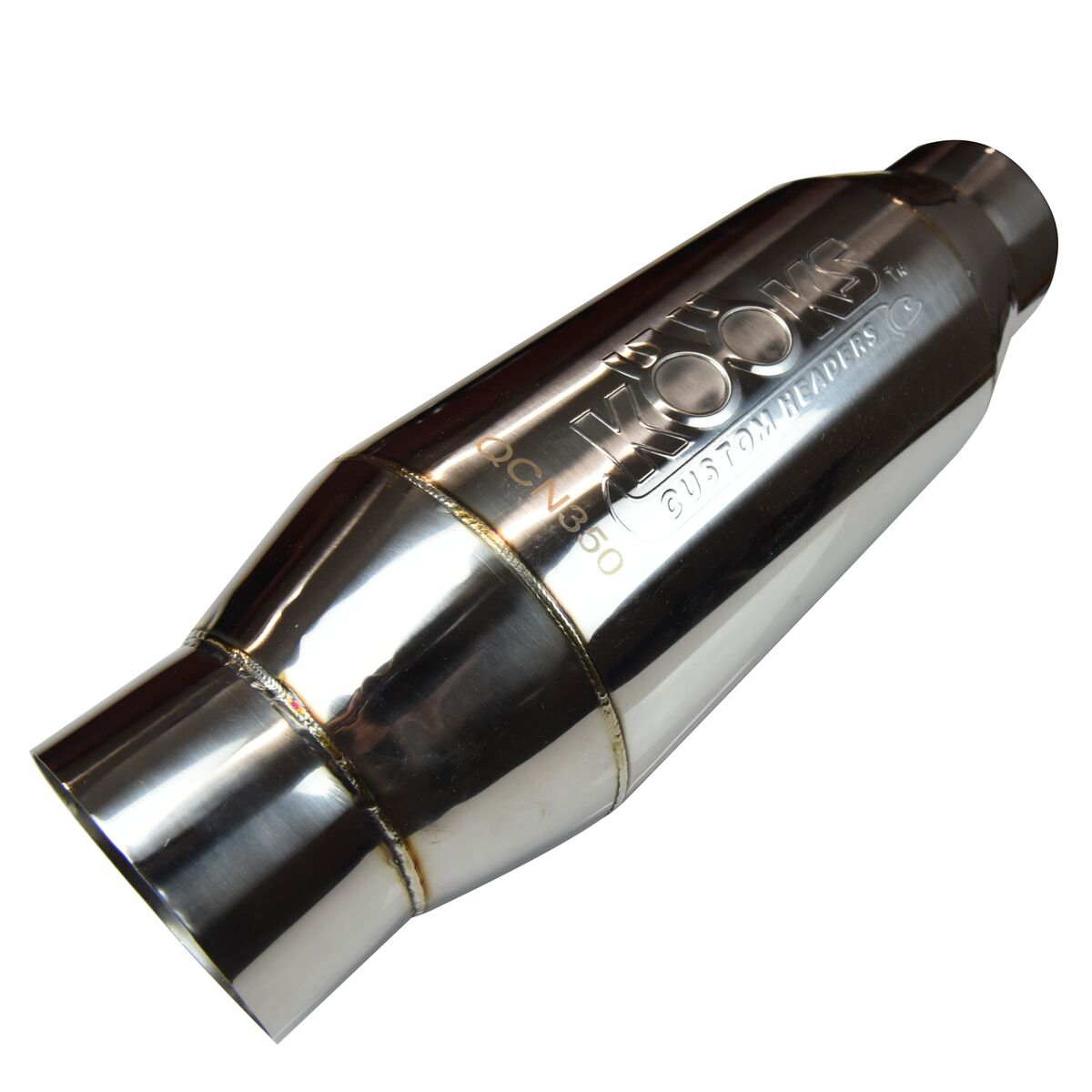

The Kooks QCN350 is a directional quad-core muffler built to the NASCAR Whelen Modified specification. Its polished stainless steel body gives your race exhaust a clean finish, with a 3-1/2" ID inlet and a 3-1/2" OD outlet to match your pipework. Check the body and overall dimensions below when planning the space around it.
SKU: QCN350
Match the inlet and outlet correctly
The inlet is 3-1/2" inside diameter; the outlet is 3-1/2" outside diameter. Those are different joint interfaces, even though the nominal number is the same. The muffler is directional, so follow the intended flow orientation when fitting.
Allow room for the complete body
The body has a 5" outside diameter and an 8" body length. Overall length is 16". Match the footprint and connections to the exhaust design, and check the current rules and sound limits for the event you intend to enter.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | QCN350 |
| Application type | NASCAR Whelen Modified-specification race muffler |
| Design | Directional; quad-core |
| Material and finish | Polished stainless steel |
| Inlet | 3-1/2" inside diameter (ID) |
| Outlet | 3-1/2" outside diameter (OD) |
| Body diameter | 5" outside diameter (OD) |
| Body length | 8" body length |
| Overall length | 16" overall length |
| Quantity | One muffler; sold individually |
Frequently asked questions
Are both ends 3-1/2" inside diameter?
No. The inlet is 3-1/2" ID and the outlet is 3-1/2" OD. Match each joint to that interface.
Can it be fitted in either direction?
It is a directional muffler. Fit it in the intended flow orientation.
Does the name guarantee acceptance at my event?
The name identifies its specification. Check the current event requirements and sound limits for your complete race exhaust.
