| Specification | Details |
|---|---|
| Vehicle application | Next-generation Ford Ranger Raptor; 2022-on |
| Construction | Steel with zinc-coated surface and powdercoat finish |
| Outer and centre tubes | 60.3 mm diameter; 2.6 mm wall thickness |
| Wings and pans | 3 mm steel |
| Wing/centre radius | 30 mm |
| Design | Bumper-cut; pressed top pan and aluminium winch cover |
| Aerial mounting | Two CB aerial brackets |
| Other features | Two jack points and underpanels |
| Finish | Matt-black powdercoat |
| Bar, mounts and fitting kit weight | 79 kg |
| Original equipment removed | 17 kg |
| Approximate net added weight | 62 kg before optional accessories; calculated as 79 kg minus 17 kg |
| Added vehicle length | 165 mm |
| Jacking points | Two ARB Jack / Hi-Lift Jack points; not recovery attachments |
| Winch installation kit | 3540240; separate accessory, identified in ARB fitting instructions 37801240 |

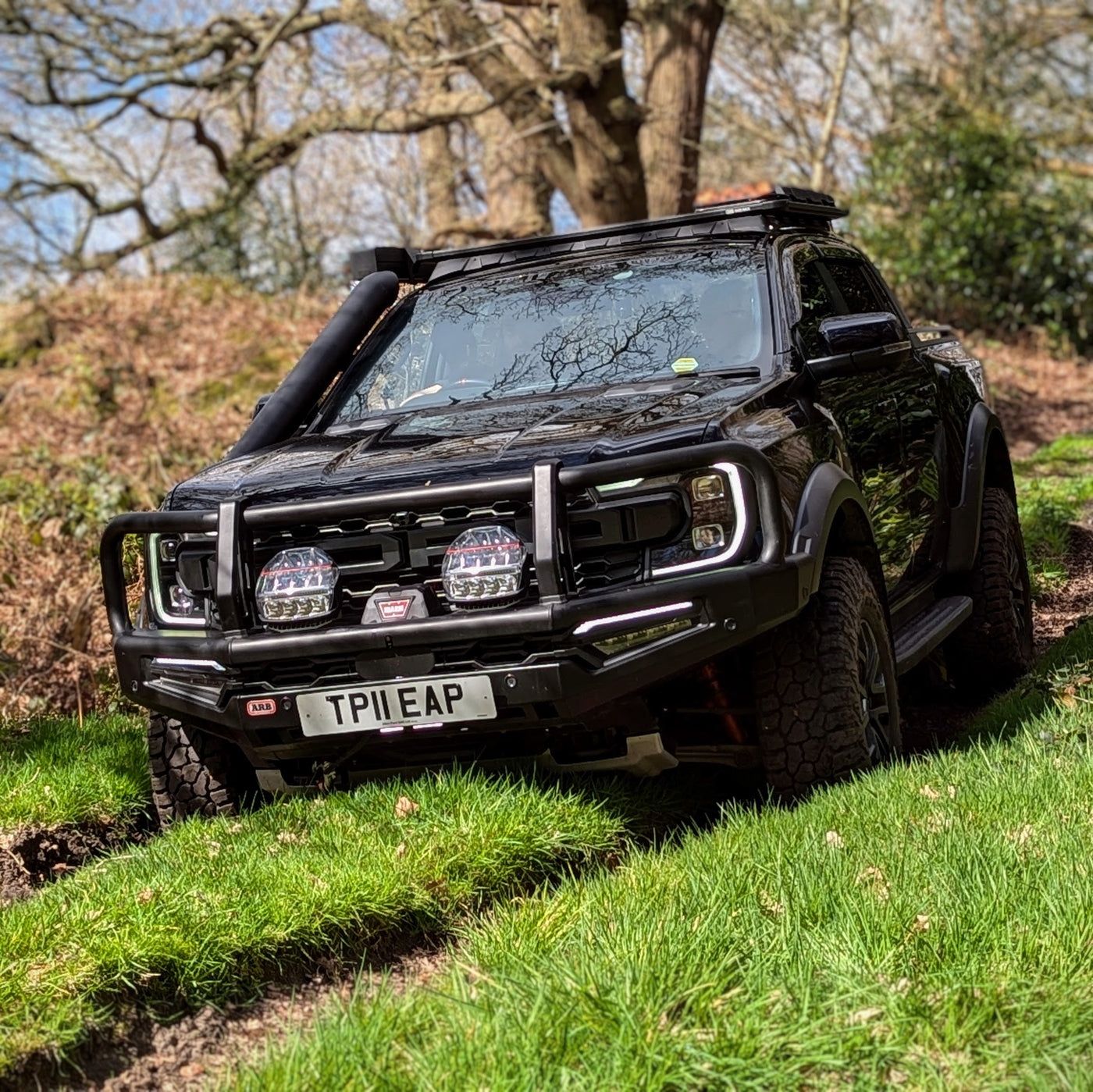

Steel protection, a tougher look and room for a winch.
A Summit MkII gives the Raptor a purposeful touring front end before you add a single accessory. Shaped steel wings, a matt-black finish and a dedicated mounting system bring protection and a finished appearance together.
ARB 3440660 also gives you the provision to build around a winch, driving lights and communications equipment. The bar package includes its integrated lighting and mounts; the optional equipment and installation are separate choices.
SKU: XVFBF3440660 · Manufacturer part number: 3440660
The zinc-coated steel bar uses 60.3 mm outer and centre tubes, 2.6 mm tube walls and 3 mm wings and pans. The pressed top pan, 30 mm wing/centre radius, underpanels and aluminium winch cover carry the design across the front of the truck.
Integrated fog, daytime-running, indicator and clearance-light functions are part of the bar. Extra driving lamps are separate, leaving you free to choose the beam for your journeys. Two CB aerial brackets give the radio installation a proper place too.
If a winch is on your list, fit it with the bar. ARB recommends that approach on this Raptor application; adding one later can repeat labour.
The bar accepts compatible low-mount Warn, Magnum, Bushranger and Smittybilt winches up to 10,000 lb. Match the exact model as well as its rating. The optional winch installation kit is 3540240. The winch and its required installation kit are separate from the bar price.
The £2,650 price covers the bar, chassis mounts and fitting kit, underpanels, aluminium winch cover, integrated lighting and two aerial brackets. The two ARB Jack / Hi-Lift Jack points are built into the bar.
Extra driving lamps, a winch, aerials, radio equipment, accessory wiring and installation are separate. The jack points are for jacking; use appropriate recovery attachments for recovery pulls.
This is a bumper-cut installation. The ARB guide transfers the camera and washer nozzle to dedicated brackets and relocates the front parking sensors. That is practical integration work for the installer alongside cutting, finishing, wiring and bar alignment.
Professional fitting should include functional checks and any calibration required for the vehicle. The bar is airbag compatible and ADR compliant for the specified ARB application; the finished installation still needs to meet the requirements where the truck is used.
The bar, mounts and fitting kit weigh 79 kg and replace 17 kg of original equipment: approximately 62 kg net added weight before a winch or other accessories. That is a component-weight calculation, not a measured front-axle increase.
The bar adds 165 mm to vehicle length. Allow for garage and parking clearance, and include the full front-end equipment in the vehicle and axle-load plan. The bar does not raise the truck’s permitted load limits.
The UK price includes VAT, customs charges and supplier shipping. Installation and optional accessories are separate. We can provide the availability and delivery estimate for your address before the fitting is booked; non-UK orders need a separate quote.
Use manufacturer part number 3440660 or our SKU XVFBF3440660 when discussing the order. We can help match the winch and lighting accessories to the bar before fitting.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
No. ARB 3440660 is the Summit MkII for the 2022-on next-generation Ranger Raptor. Standard Rangers and earlier Raptors need their own specified bar.
No. Choose a compatible winch and the required installation kit separately. The current ARB fitting guide names 3540240 for winch installation; we would plan it into the bar’s first fitting.
The bar’s integrated lighting and two aerial brackets are included. Additional driving lamps, aerials, radio equipment and their wiring are separate.
Yes. It is a bumper-cut installation, with camera and sensor relocation as set out in the ARB guide.
No. They are ARB Jack / Hi-Lift Jack points. Recovery pulls require suitable recovery attachments.
The bar adds 165 mm of length and approximately 62 kg net before accessories. Include the winch, lamps and other equipment when assessing the completed vehicle’s loads.
ARB states airbag and ADR compliance for its specified application. It does not establish blanket approval for every UK vehicle or accessory installation.
Model year, engine, drivetrain, hardware and existing modifications can all change what fits. Check the applications and supplier notes above, or send us your exact vehicle and setup before ordering.
