| Specification | Details |
|---|---|
| Brand | ARB |
| SKU | X8SBR17940100FORA8D |
| Manufacturer part number | 17940100 |
| Vehicle application | Ford Ranger Mk8 Double Cab; listed 2022+ application |
| Construction | 6061 aluminium extrusion |
| Finish | Black powder coat |
| Accessory attachment | BASE Rack dovetail system on multiple rail faces |
| System load rating | 150 kg with required support arrangement; lower vehicle/accessory limits govern |
| Listed assembly | Left/right bed-rack frames, vehicle brackets and fitting hardware |
| Cross bars | Optional; at least one required when accessories are fitted |
| BASE Rack platform | Selected separately with matching bed-rack mounting kit |
| Required bracing | Appropriate 4140135 Ranger or 4140138 MY22 Raptor brace arrangement |
| Factory roller shutter | 17940100 arrangement requires its removal; Wildtrak sailplane also removed |
| Cable routing | Inside the frame extrusion |
| Fastener checks | After 500 km and at regular service/pre-trip intervals |
Carry more above the bed and keep useful space underneath

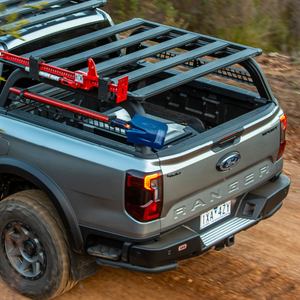

Your Ranger's load bed can carry bulky equipment and still have room for the things you use every day. This ARB Bed Rack kit adds rails above the bed, with dovetail mounting points for compatible equipment on several faces. Add the appropriate cross bars or BASE Rack platform to suit what you want to carry, from work gear to camping equipment.
SKU: X8SBR17940100FORA8D
The north-to-south rails provide mounting positions on top, underneath, inside and outside. With the appropriate cross bars fitted, the arrangement can leave useful access for taller items in the bed. You can organise smaller equipment around the rails while keeping the central load area available for larger luggage.
The frame uses 6061 aluminium extrusion with a black powder-coat finish. Its low height helps keep a compatible rooftop installation lower, while internal cable routing provides a tidy route for suitable lighting or power wiring. The system has a 150 kg load rating when installed with the required supports and used within all applicable limits.
The kit supplies the left and right bed-rack frames, vehicle-specific mounting brackets and fitting hardware. Optional cross bars, BASE Rack platform and its bed-rack attachment kit are selected separately. That lets you choose the upper carrying arrangement to suit the equipment you actually use.
This listing is for the Ranger Mk8 double cab, using the 17940100 arrangement without the factory roller shutter. On Wildtrak installations the factory sailplane and roller tonneau are removed. The fitting guide requires the appropriate J-brace arrangement: 4140135 for the specified Ranger installation, or 4140138 for the MY22 Raptor arrangement. Allow for the vehicle-specific brace arrangement when specifying the installation.
At least one cross bar must remain fitted when accessories are attached to the bed rack. Use a trained installer and the matching vehicle instructions so the supports, clearances and load-carrying arrangement are checked together.
Our Roof Rack Accessories include BASE Rack-compatible equipment such as awning brackets, shovel holders and load-securing fittings. Choose the fitting for the bed-rack rail or the separate platform it attaches to. Platform-specific accessories and cross bars still need the matching attachment arrangement.
For UK customers, the price shown includes VAT, customs charges and supplier shipping costs, so you can order with confidence and avoid unexpected customs bills after purchase. If any customs-related questions or issues arise, Hoonies Adrenaline will handle them for you.
For orders outside the UK, please contact us through the contact form before purchasing so we can prepare a personalised quote.
We aim to keep strong stock availability across the products we sell, but imported, specialist and custom-order items may have a lead time. If you need an estimated delivery window before ordering, please contact us and we will be happy to check this for you.
If you place an order for an item that is currently out of stock or already on order with a supplier, Hoonies Adrenaline will contact you as soon as possible with an update.
For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.
Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.
The frame and mount kit are the foundation. Select the optional cross bars or matching BASE Rack platform and attachment kit for the carrying arrangement you want.
The 17940100 arrangement is for fitting without the factory roller shutter. The Wildtrak factory sailplane and roller tonneau are removed for this installation.
The fitting guide specifies the appropriate Ranger J-brace arrangement. It lists 4140135 for Ranger and 4140138 for the MY22 Raptor arrangement. Your installer uses the arrangement matched to your vehicle.
Yes, at least one cross bar must remain fitted when accessories are attached. Choose the appropriate cross-bar or platform arrangement for the load you intend to carry.
The correctly supported system is rated to 150 kg. Use any lower applicable vehicle or accessory limit, distribute the load evenly and secure it properly.
Check the fasteners after the first 500 km, at regular service intervals and before a trip. Include the accessory mounts and load security in those checks.
