Know the landed cost before you order
Prices include VAT. Shipping is charged separately and calculated at checkout for your destination. If no shipping option is shown, contact us for a quote before ordering.

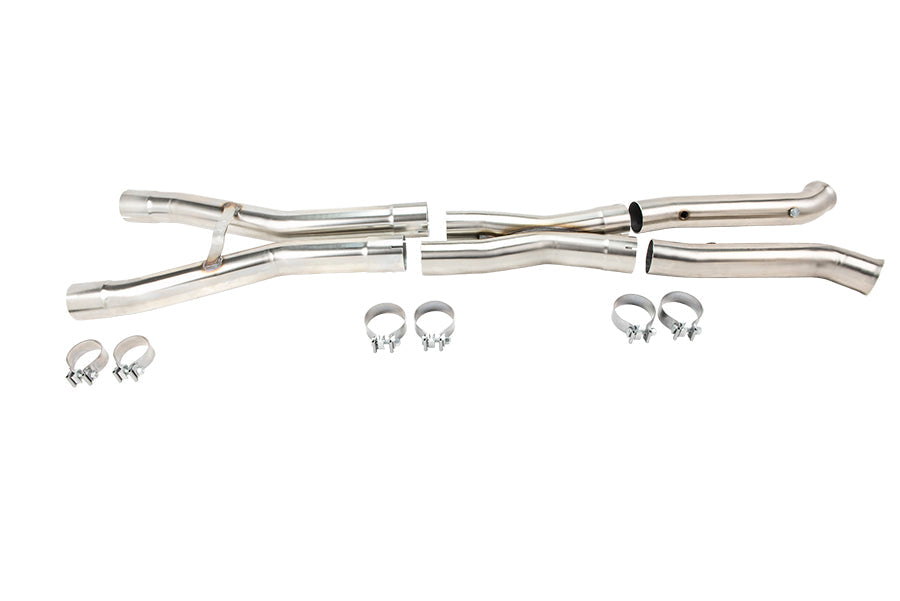

Complete the exhaust on your Z06 or ZR1
Enjoy your C6 with the exhaust combination you want. These Kooks connection packages finish a matched long tube header installation with 3" pipework and the 3" Z06/ZR1 OEM rear connection. Choose a conventional or ULTRA X-pipe and the catalyst specification for your engine, then match the header joint before ordering.
SKUs: 21613101, 21613121, 21613221, 21613301, 21613321, 21613421
A choice of crossover layouts
The conventional X-pipe joins the exhaust banks through a crossover; the ULTRA X-pipe uses a longer merge for a smoother, deeper V8 character. Your rear mufflers still play a major part in volume and cabin sound, so compare complete exhaust combinations when choosing.
Catalysts that suit the engine
GREEN-family catalysts support naturally aspirated or forced-induction applications within their respective capacities. Performance Cats are for naturally aspirated engines below 550 RWHP, so they are not the choice for a supercharged ZR1. Competition Only versions supply catalyst-free front connections for competition, off-road and track use.
Check the header connection revision
The conventional X-pipe versions on this page use the revised Torca swivel-seal connection. Those versions will not fit older Kooks headers with the two-bolt flange connection. Match the actual header joint before buying; the vehicle name and pipe diameter alone do not establish compatibility.
Keep the compatible 3" rear exhaust
These packages finish with the 3" Z06/ZR1 OEM rear connection and require Kooks long tube headers. Professional fitting is recommended, with the joint style, pipe alignment, heat clearance and rear connection checked together.
Choose your option
| SKU | Cat Type | X Style | Fitting / contents | Stated use restriction |
|---|---|---|---|---|
| 21613101 | Comp. Only | X Pipe | Conventional X-pipe; revised Torca swivel-seal header connection, NOT older two-bolt flanges; 3" OEM rear outlet. | Competition, off-road and track use only. Not for use on public roads. Kooks competition-use waiver required. |
| 21613121 | Comp. Only | ULTRA X | ULTRA long-merge X-pipe; 3" OEM rear outlet. Match the header interface for this version. | Competition, off-road and track use only. Not for use on public roads. Kooks competition-use waiver required. |
| 21613221 | Performance Cats | ULTRA X | ULTRA long-merge X-pipe; naturally aspirated application only; 3" OEM rear outlet. | |
| 21613301 | GREEN Cats | X Pipe | Conventional X-pipe; revised Torca swivel-seal header connection, NOT older two-bolt flanges; 3" OEM rear outlet. | |
| 21613321 | GREEN Cats | ULTRA X | ULTRA long-merge X-pipe; 3" OEM rear outlet. Match the header interface for this version. | |
| 21613421 | H.O. GREEN Cats | ULTRA X | ULTRA long-merge X-pipe; 3" OEM rear outlet. Match the header interface for this version. |
Vehicle fitment
| Years | Vehicle and trim | Engine | Applicable SKU / fitting conditions |
|---|---|---|---|
| 2006-2013 | Chevrolet Corvette Z06 | 7.0L V8 | 21613101, 21613121, 21613221, 21613301, 21613321, 21613421 |
| 2009-2013 | Chevrolet Corvette ZR1 | 6.2L V8 | 21613101, 21613121, 21613301, 21613321, 21613421. Performance-catalyst 21613221 is for naturally aspirated builds, not the supercharged LS9 |
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| Application | Corvette C6 Z06 LS7, 2006-2013; ZR1 LS9, 2009-2013 |
| Construction | 304 stainless steel |
| Layouts | Conventional X-pipe or ULTRA long-merge X-pipe, in the listed combinations |
| Pipe and rear-outlet diameter | 3" pipework and 3" Z06/ZR1 OEM rear connection |
| Required headers | Matching Kooks long tube headers |
| Conventional X-pipe interface | Revised Torca swivel-seal connection; incompatible with older two-bolt flange headers |
| Performance catalyst limit | Naturally aspirated engines below 550 RWHP |
Frequently asked questions
Can I fit the conventional X-pipe to my older Kooks headers?
Only if the headers have the matching revised Torca swivel-seal connection. The conventional versions here do not fit the older two-bolt flange interface.
Does it connect to the original manifolds?
It requires matching Kooks long tube headers, not the OEM manifold and catalyst arrangement.
Can I use Performance Cats on a supercharged ZR1?
No. Performance Cats are for naturally aspirated builds. Choose a suitable GREEN-family catalyst for forced induction.
Will it join the factory Z06 or ZR1 rear exhaust?
The rear connection is the 3" OEM interface for the listed Z06/ZR1 applications. Match the header connection as well.
