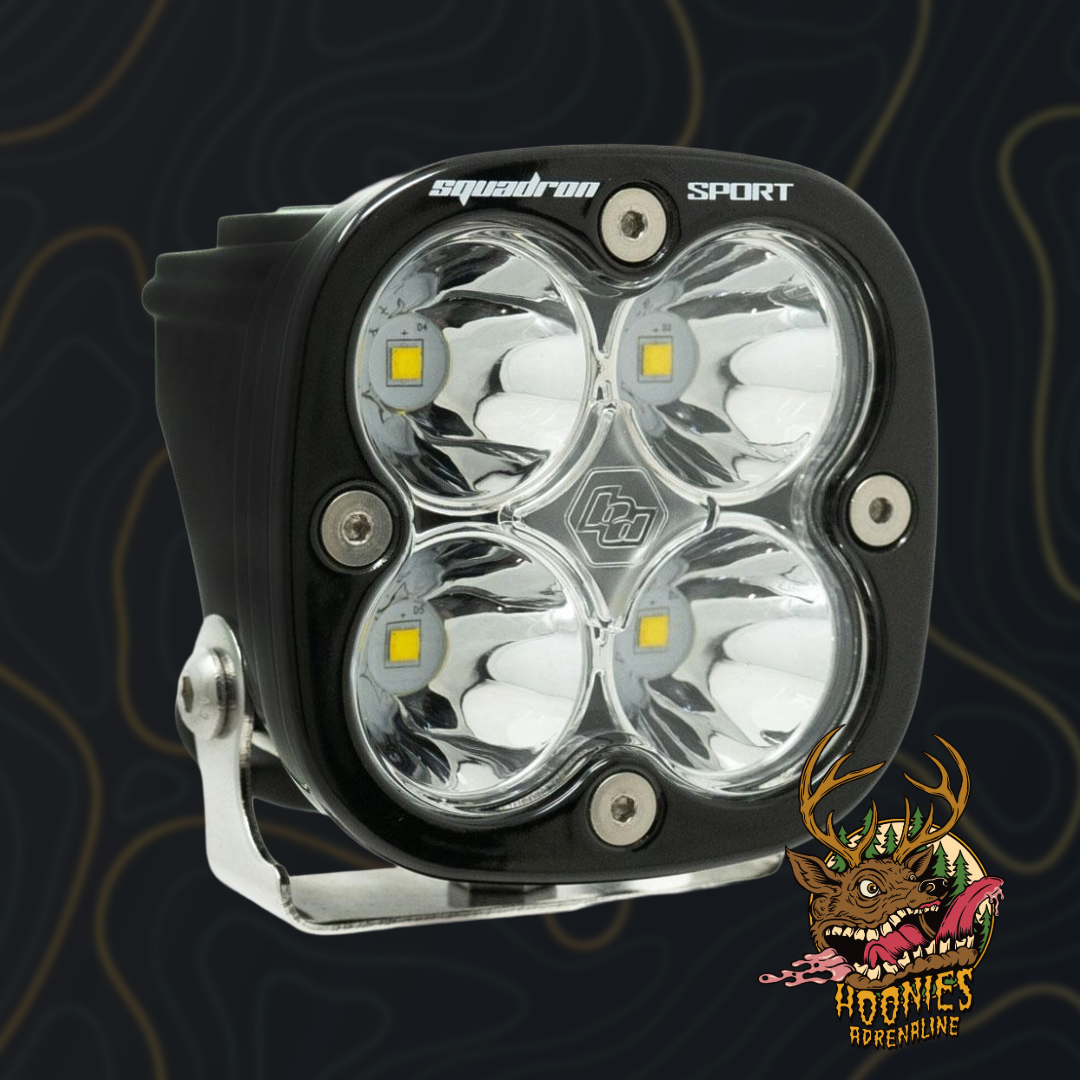

A compact pair of Squadron Sport lights gives you plenty of choice over where to add light to your truck. Use a forward pattern for the track, a wide pattern around bends or a scene pattern for working beside the vehicle. The pair includes a harness and mounting hardware, making it an approachable way to add useful off-road lighting without finding room for a large pod.
Spot focuses the light ahead. Driving/Combo mixes forward reach with a wider driving pattern, while Wide Cornering puts more emphasis on the area to the sides. Work/Scene is for a broad nearby working area. Clear and amber lenses are offered with each pattern here, so you can choose the actual light distribution you need.
Each compact pod has a 3,162 raw-lumen rating and a 30.36W electrical rating. These are the original Squadron Sport lights identified by the SKUs below; keep those part numbers in mind when choosing matching lenses or service parts.
The black powder-coated aluminium housings, hard-coated polycarbonate lenses and stainless hardware suit equipment that is handled, cleaned and used off road. Replaceable lenses and optics let you service the lights rather than treat a damaged lens as the end of the whole pod.
Two pods, the 640117 wiring harness and mounting hardware are included. Add the correct vehicle brackets for your chosen position and aim the lights for the job before securing the installation.
| Specification | Details |
|---|---|
| Brand | Baja Designs |
| Supplied quantity | Two light pods |
| Raw output per light | 3,162 lm |
| Electrical rating per light | 30.36W / 2.2A |
| Model identity | Original Squadron Sport; not Squadron 2.0 |
| Housing | Powder Coated Cast Aluminum |
| Lens | Hardcoated Polycarbonate |
| Mounting hardware material | Stainless Steel |
| Average rated LED life | 49,930 hours |
| Light body dimensions, W x H x D | 3.07 x 3.07 x 2.77in; allow additional mounting/connector clearance |
| Main lens choices | See the beam and lens options below |
| Wiring harness included | Yes |
| Mounting hardware included | Yes |
| Durability rating | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Impact rating | IK10 Compliant (Mechanical Impact Testing) |
| Water-resistance rating | IP69K (Waterproof up to 9ft & Pressure Washable) |
| SKU / reference | Option | Details |
|---|---|---|
| 557801 | Spot / Clear | Two lights; Spot; Clear main lenses; harness included |
| 557811 | Spot / Amber | Two lights; Spot; Amber main lenses; harness included |
| 557803 | Driving / Combo / Clear | Two lights; Driving/Combo; Clear main lenses; harness included |
| 557813 | Driving / Combo / Amber | Two lights; Driving/Combo; Amber main lenses; harness included |
| 557805 | Wide Cornering / Clear | Two lights; Wide Cornering; Clear main lenses; harness included |
| 557815 | Wide Cornering / Amber | Two lights; Wide Cornering; Amber main lenses; harness included |
| 557806 | Work / Scene / Clear | Two lights; Work/Scene; Clear main lenses; harness included |
| 557816 | Work / Scene / Amber | Two lights; Work/Scene; Amber main lenses; harness included |
No. These are the original Squadron Sport SKUs shown in the option table. Their specifications and parts should be matched to this model.
Two Squadron Sport pods, a 640117 wiring harness and mounting hardware. Choose any vehicle-specific brackets separately.
Work/Scene spreads light over a broad nearby area. Choose a forward Spot or Driving/Combo pattern when your main aim is the track ahead.
Yes. The 3,162 raw-lumen and 30.36W figures describe one light. There are two in the kit.
Yes. The uService design uses replaceable lenses and optics. Match the replacement to the original Squadron housing and follow the sealing instructions.
