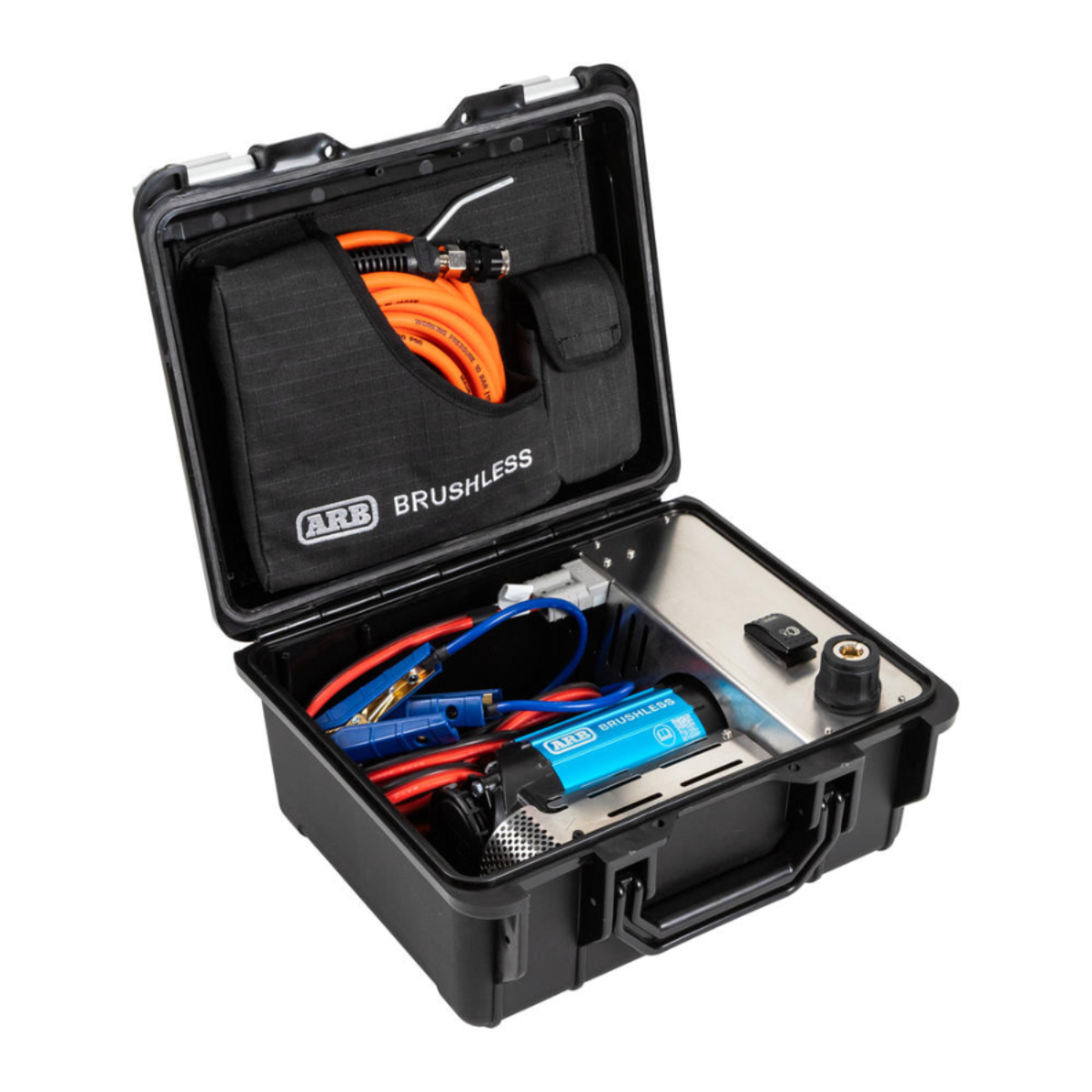

Compressor, carry case, battery harness, hose and inflation accessories
Air up faster and get on with your trip
Get your tyres ready for the next stretch with a portable compressor that is easy to take between vehicles. The ARB CKBLP12 combines faster brushless airflow, active cooling and a carry-case kit, giving you a capable air supply wherever you have a suitable 12 V battery.
SKU: XAACCKBLP12
More airflow when you need to air up
The brushless motor arrangement delivers 130 L/min of free air at 0 kPa and 88 L/min at 200 kPa. Free-air output is 50% higher than the corresponding ARB brushed single compressor. Actual tyre-filling time depends on tyre size, starting pressure and valve restriction, but the extra airflow is useful when you have several tyres to fill.
Portable or permanently fitted
Choose this single portable kit when you want a 7.9 kg compressor you can carry between suitable 12 V vehicles, with the case, 7 m hose and inflation accessories together. Its 88 L/min output at 200 kPa is lower than the CKMTP12 portable twin at 131.8 L/min, but that brushed twin kit weighs 15 kg and includes a 4-litre tank. For a fixed installation with more airflow, the CKBLTA12 brushless twin delivers 176 L/min at 200 kPa and needs a separately purchased inflation hose. The CKBLP12 is rated at 90% duty at 22 degrees C and 200 kPa; the CKBLTA12 is rated at 100% in the same conditions.
Cooling and control that work with the conditions
Electronic speed control responds to pressure, temperature and supply voltage. Active cooling fans continue after the compressor stops until it has cooled. Built-in protection monitors voltage changes, over-current and motor stall, with audio and visual diagnostics to help identify a problem.
Designed for portable use
The case keeps the compressor and inflation equipment together. A 7 m hose gives useful reach around your vehicle, and the polarity-correction harness lets either blue clamp connect to either battery terminal. Keep the case open and follow the operating guide so cooling airflow can do its job.
Add the equipment you will use
The kit includes the inflation hose and accessories. A digital tyre inflator is a useful extra for reading pressure clearly. If you want a permanent air supply instead, the brushless twin on-board compressor offers more airflow with a fixed installation.
Use it within its rated conditions
The CKBLP12 portable kit has a 90% duty-cycle rating at 22 degrees C and 200 kPa: up to 54 minutes running per hour in those test conditions. Keep filters and connections clean, and let the cooling cycle finish before packing it away.
Technical specifications
Specification
Details
SKU
XAACCKBLP12
Manufacturer
ARB
Manufacturer part number
CKBLP12
Type
Single brushless portable
Supply voltage
12 V; operating range 11.5-15 V
Free-air flow
130 L/min at 0 kPa
Loaded flow
88 L/min at 200 kPa / 29 psi
Current at 0 kPa
15 A
Current at 200 kPa
40 A
Duty cycle
90% at 22 degrees C and 200 kPa
Pressure switch
135 psi on / 150 psi off
Cooling
Active fan cooling, including after-run
Diagnostics
Audio and visual status alerts
Protection
Voltage, over-current and motor-stall monitoring
Mounting / supply
Carry case and polarity-correcting battery clamps
Kit weight
7.9 kg
Case dimensions
440 L x 238 W x 208 H mm
Hose
7 m inflation hose included
Maximum current
45 A
Included
Compressor, carry case, battery harness, hose and inflation accessories
Frequently asked questions
How is brushless different from the brushed version?
The brushless motor has no carbon brushes to wear out and gives 50% more free-air output than the corresponding ARB brushed model. It also adds electronic control, active cooling and diagnostics.
Is the quoted airflow the tyre-filling rate?
The 130 L/min figure is free air at 0 kPa. At 200 kPa, output is 88 L/min. Tyre valves and increasing pressure affect actual filling speed, so compare figures measured at the same pressure.
Can I use it for ARB Air Lockers?
This portable model is primarily an inflation kit. For a permanent Air Locker installation, choose an appropriate on-board compressor and the correct plumbing and controls.
Why do the fans keep running after I switch it off?
They continue cooling the compressor after use. Leave power connected as directed until the cooling cycle finishes, rather than packing away a hot unit immediately.
Can it run continuously?
The portable single is rated at 90% duty at 22 degrees C and 200 kPa. Allow the required rest and cooling time. The portable kit does not share the 100% duty rating of the single on-board model.
What else should I buy?
The portable kit includes its hose and inflation accessories. Add a digital tyre inflator if you want a clear pressure display and controlled filling.
