Summary

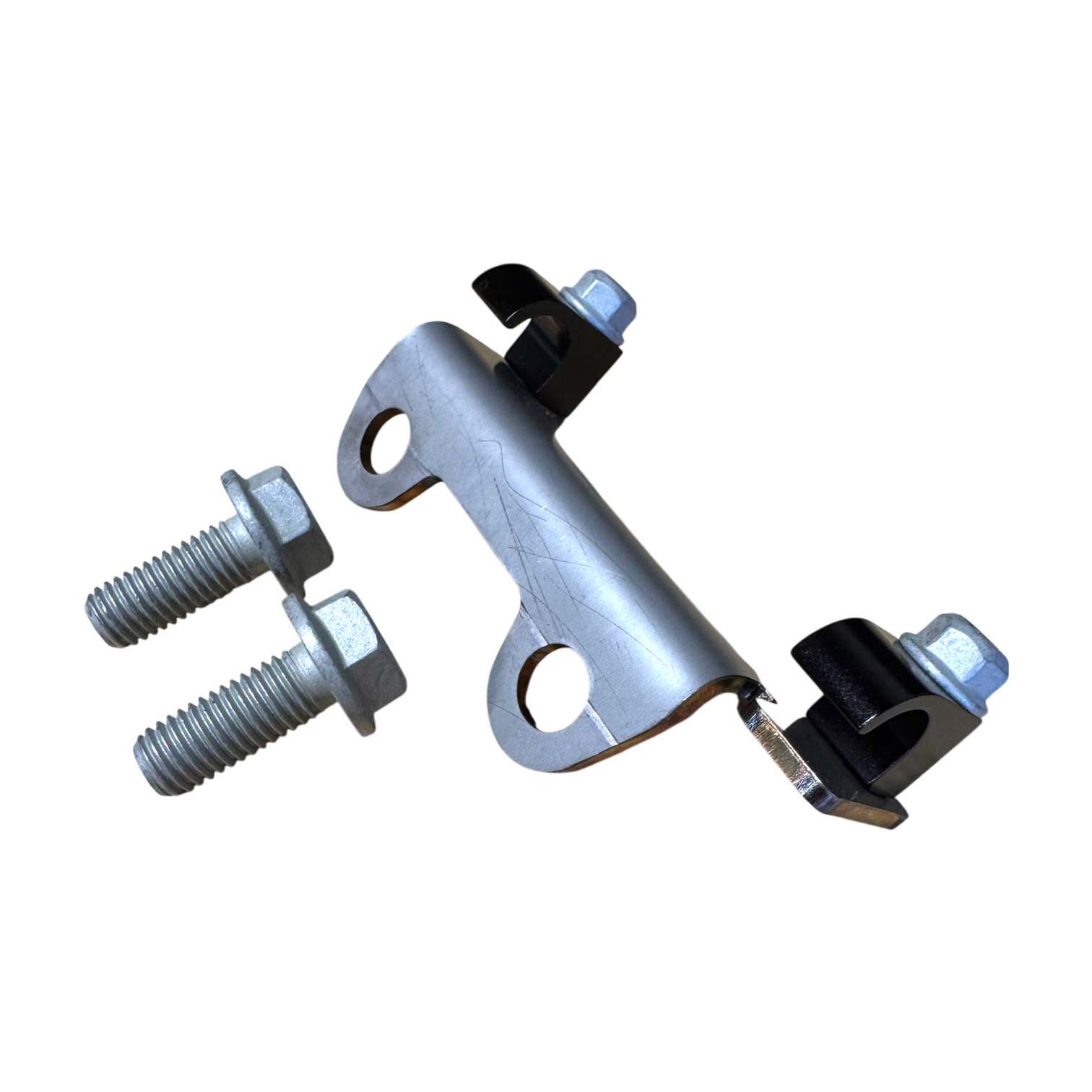

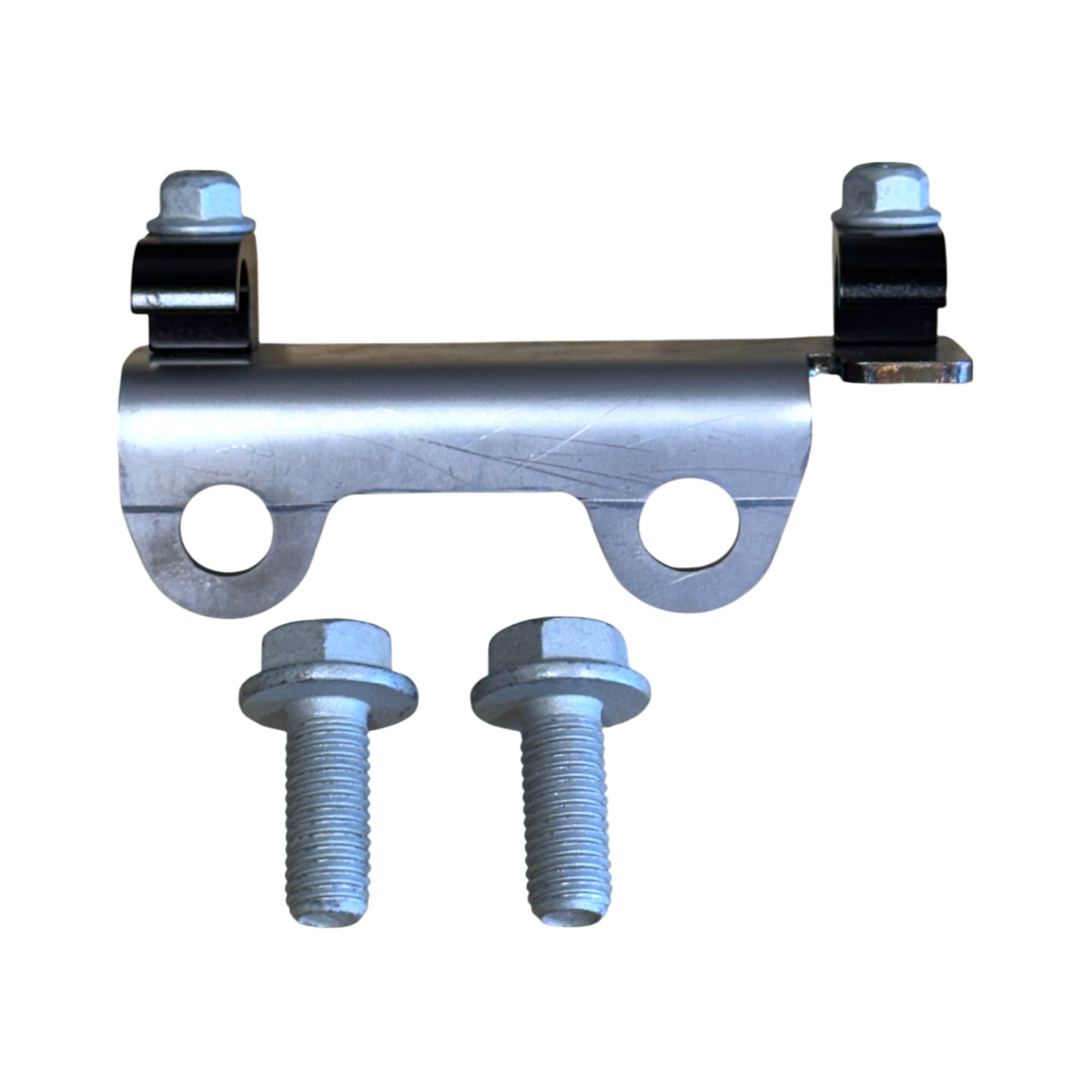

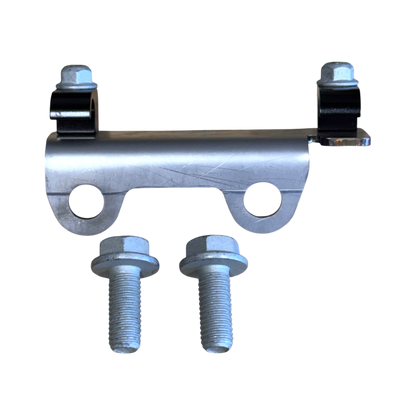

This APEX Design USA bracket secures the Through Shaft Ram hydraulic line to the top of the FAD housing, and is used with the TSR High Mount kit. The axle end of a hydraulic assist run is where movement and terrain meet the hoses, so a dedicated mounting point on the FAD housing keeps the line located and protected exactly where improvisation fails.
Best For
- TSR High Mount installs fixing the hydraulic line at the axle end
- Finishing an assist hose run with every section properly mounted
Key Specs
- Manufacturer: APEX Design USA
- Product Type: Hydraulic hose bracket
- SKU: X01-17-027
- Mounting Position: Top of the FAD housing
- Works With: TSR High Mount kit
Fitment And Setup Checks
Confirm you are running the High Mount version of the TSR and that your hose route crosses the FAD housing before ordering. Check hose movement through full steering and suspension travel after fitting so the secured line never pulls tight.
Technical Specifications
| Manufacturer | APEX Design USA |
| Product Type | Hydraulic hose bracket |
| SKU | X01-17-027 |
| Position | FAD housing, top |
| Works With | TSR High Mount kit |
Frequently Asked Questions
Do I need it with a standard-mount TSR?
It is used with the High Mount kit - check which mount style your system runs before ordering.
The other hose mounts in the APEX steering range secure the rest of the run from box to ram.
