Custom headers with the collector size you need
Keep 1-7/8-inch primary tubing and choose a 3-1/2-inch collector outlet with Kooks WK2450. The 304 stainless weld-up kit lets your fabricator make the header shape around the engine and available space in your project.
SKU: WK2450

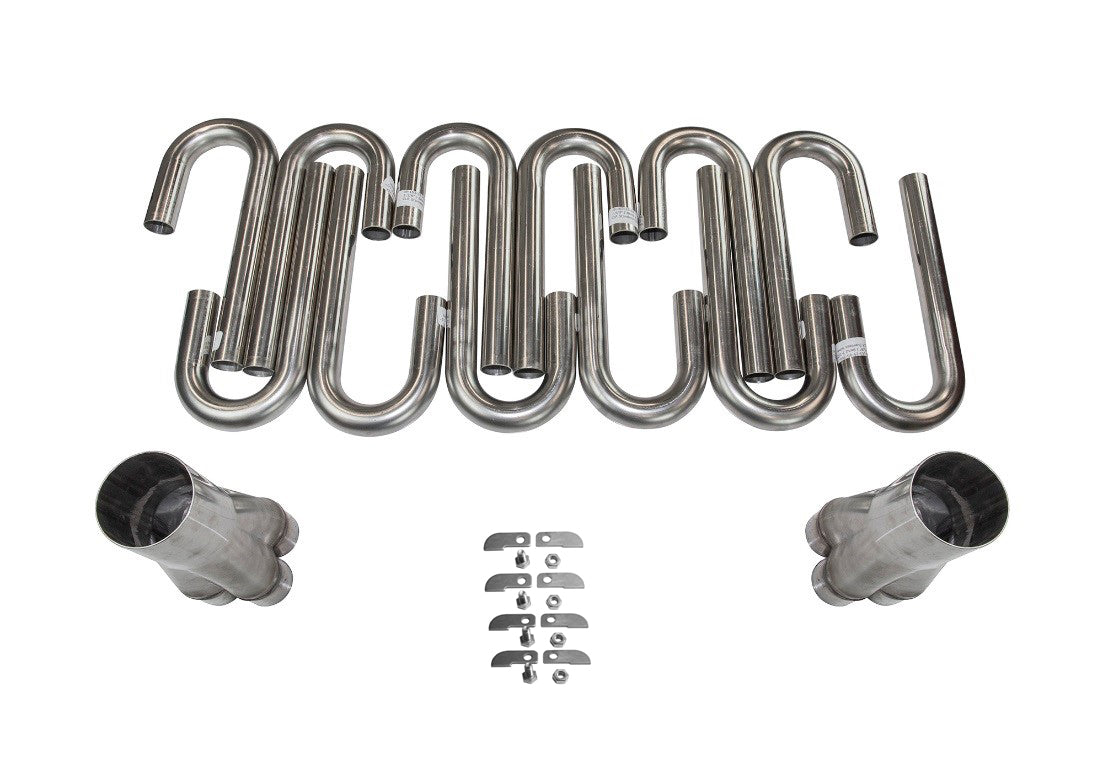

Tubes and collectors included
Twelve JB-188-25-16-304 J-bends and two 9906S collectors are supplied. Compared with the 3-inch-outlet kit, the main change is the collector outlet, so choose around the intended downstream exhaust. The two 9906S collectors have a four-into-one slip-on design with a scavenging spike, 1-7/8-inch inside-diameter inlets and 3-1/2-inch outside-diameter outlets. The inlets slip over the matching primary tubes, ready for your fabricator to position them. The twelve JB-188-25-16-304 J-bends are 16-gauge, mandrel-bent 180-degree tubing with a 2.50-inch centreline radius.
Complete the kit with your head flanges
Two header flanges are purchased separately. The exact cylinder-head port and bolt pattern should determine that choice, with final pipe routing established before welding.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | WK2450 |
| Application | Weld-up custom header fabrication |
| Primary tube diameter | 1-7/8-inch |
| Collector outlet diameter | 3-1/2-inch |
| Included bends | Twelve JB-188-25-16-304 J-bends |
| Included collectors | Two 9906S collectors |
| Header flanges | Two flanges required; purchased separately |
| Included collector design | Two 9906S four-into-one slip-on collectors with scavenging spikes |
| Collector inlet / outlet | 1-7/8-inch inside-diameter inlet / 3-1/2-inch outside-diameter outlet |
| J-bend construction | Twelve JB-188-25-16-304; 16-gauge, mandrel-bent 180-degree tubing; 2.50-inch centreline radius |
| Material | 304 stainless steel |
Frequently asked questions
What is the difference from WK2400?
WK2450 has 3-1/2-inch-outlet collectors; WK2400 has 3-inch-outlet collectors. Both use 1-7/8-inch J-bends.
How many flanges do I need?
Two cylinder-head flanges, purchased separately for the engine in your project.
