Route your exhaust the way your car needs

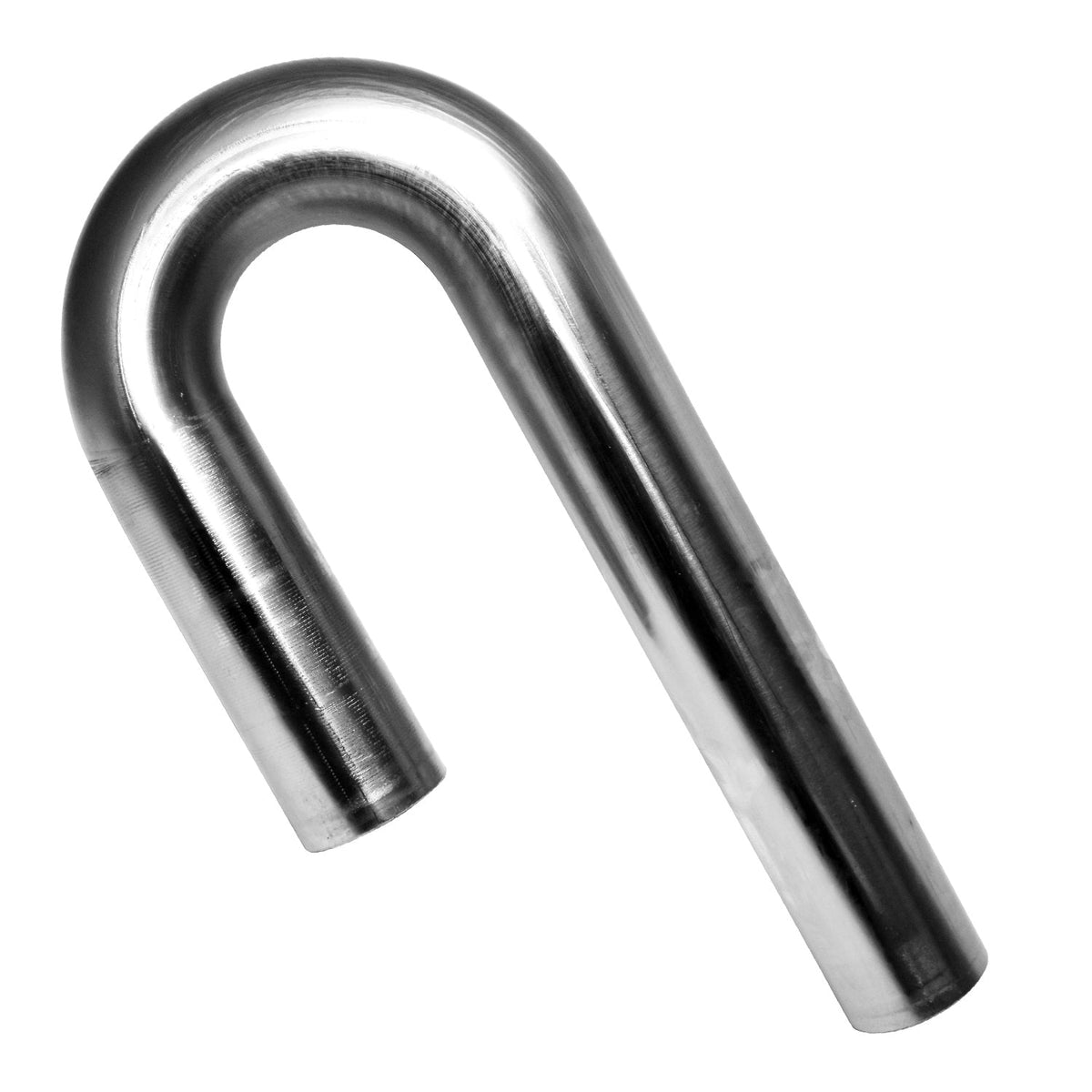

Work around your chassis and components with a 1-3/4-inch Kooks stainless bend. The 180-degree J-bend shape and 2.50-inch centreline radius give your fabricator a defined section to use when laying out a custom exhaust or header tube.
SKU: JB-175-25-16-304
Mandrel-bent stainless tubing
The bend is made from 16-gauge 304 stainless steel using mandrel bending. Supporting the tube through the bend helps it retain its cross-section, giving your fabricator a useful starting point for a cleanly routed section.
Use the radius to plan the route
The 2.50-inch radius is measured to the centreline of the tube. Allow for the tube diameter as well when checking space around the bend. The 180-degree J shape can be cut to provide the turn needed for your fabrication.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | JB-175-25-16-304 |
| Tube diameter | 1-3/4-inch |
| Bend angle | 180-degree J-bend |
| Centreline radius | 2.50-inch |
| Wall gauge | 16 gauge |
| Material | 304 stainless steel |
| Construction | Mandrel-bent |
Frequently asked questions
What does CLR mean?
Centreline radius: 2.50-inch measured to the centre of the tube through the bend. It is different from the overall space the bend occupies.
Is this a vehicle-specific fitting part?
It is a fabrication bend. Your fabricator positions, trims and joins it to suit the exhaust you are building.
