Keep catalysts in your higher-output exhaust build

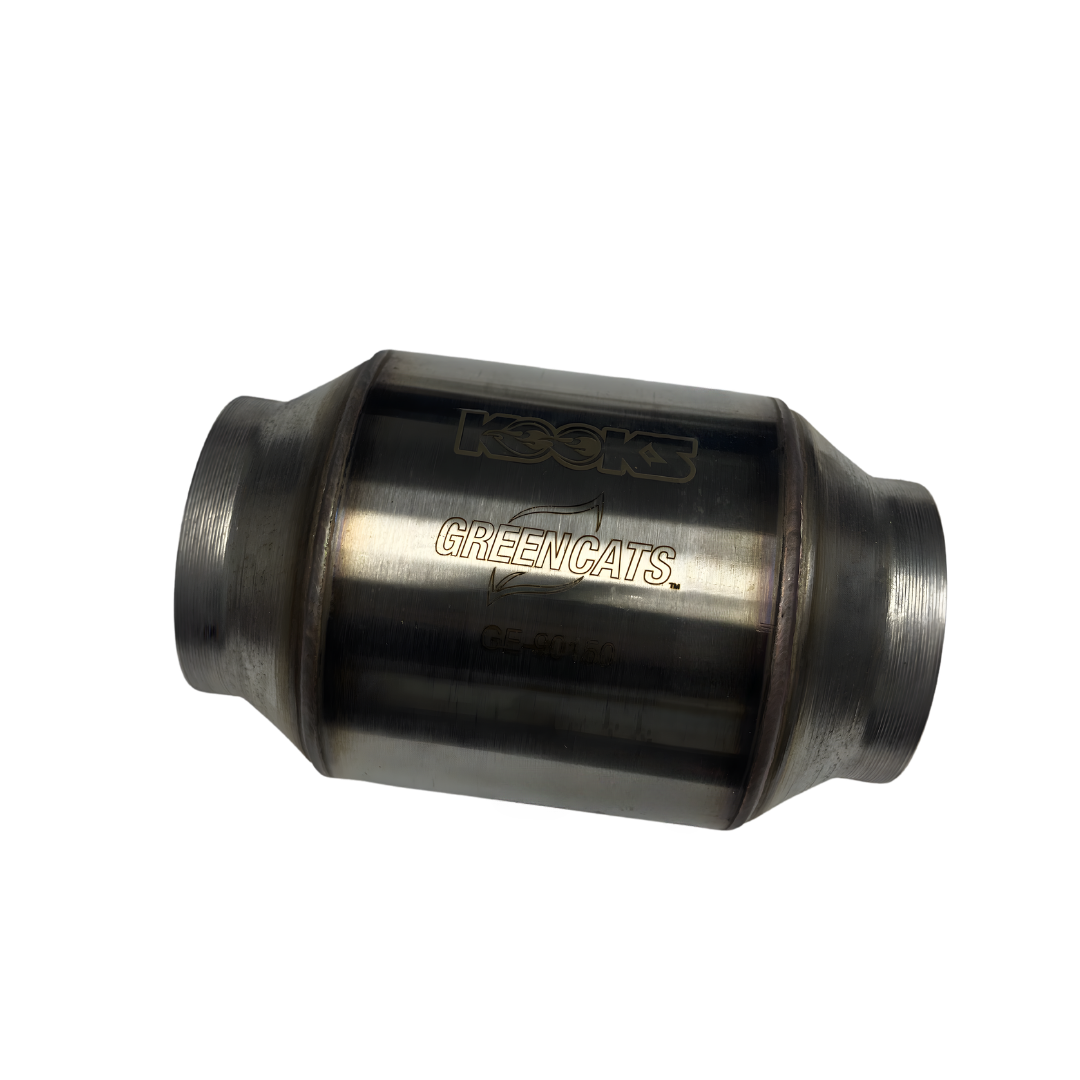

A modified engine needs catalysts chosen for the power and the pipework, not just the badge. The Kooks GE-90146 ULTRA-GREEN converter combines a 400 CPSI substrate with a 4-1/2" outside-diameter body and 3" inside-diameter connections. It supports forced induction and is rated for 425 hp per converter, or 850 hp per pair.
SKU: GE-90146
Choose by capacity and fitting space
The power figure describes the catalyst application capacity, not a gain from fitting it. Its 4" body length and 7" overall length give your fabricator a defined footprint. Check both the pipe joints and the 4-1/2" OD body clearance when placing it in the exhaust.
High-flow substrate with emissions treatment
The 400 CPSI substrate is designed to treat exhaust emissions while allowing a high-flow exhaust arrangement. CPSI means cells per square inch. ULTRA-GREEN uses the larger body and additional precious-metal content of that catalyst design.
Match the finished system
This converter is certified to U.S. EPA standards. That identifies the certification standard; it is not a UK-specific approval claim. A converter does not guarantee that a check-engine light will be eliminated, so the engine, sensor arrangement and calibration still need to suit the exhaust.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | GE-90146 |
| Catalyst type | ULTRA-GREEN |
| Inlet and outlet | 3" inside diameter (ID) |
| Body diameter | 4-1/2" outside diameter (OD) |
| Body length | 4" body length |
| Overall length | 7" overall length |
| Substrate | 400 CPSI (cells per square inch) |
| Application capacity | 425 hp per converter; 850 hp per pair |
| Forced induction | Supported within the application rating |
| Certification standard | U.S. EPA |
| Warning-light condition | Elimination of a check-engine light is not guaranteed |
Frequently asked questions
Does 850 hp mean one converter?
No. It is the rating per pair. The rating for one converter is 425 hp.
How do I choose the right capacity?
Match the rating to the power and converter arrangement of your completed build. This version is rated for 425 hp per converter or 850 hp per pair, and supports forced induction within that rating.
Can I use it on a forced-induction build?
Yes, within the converter's application rating and with the correct fitting arrangement.
Will it guarantee no check-engine light?
No. The converter does not guarantee elimination of the warning light.
