A 3-inch outlet for your fabricated header

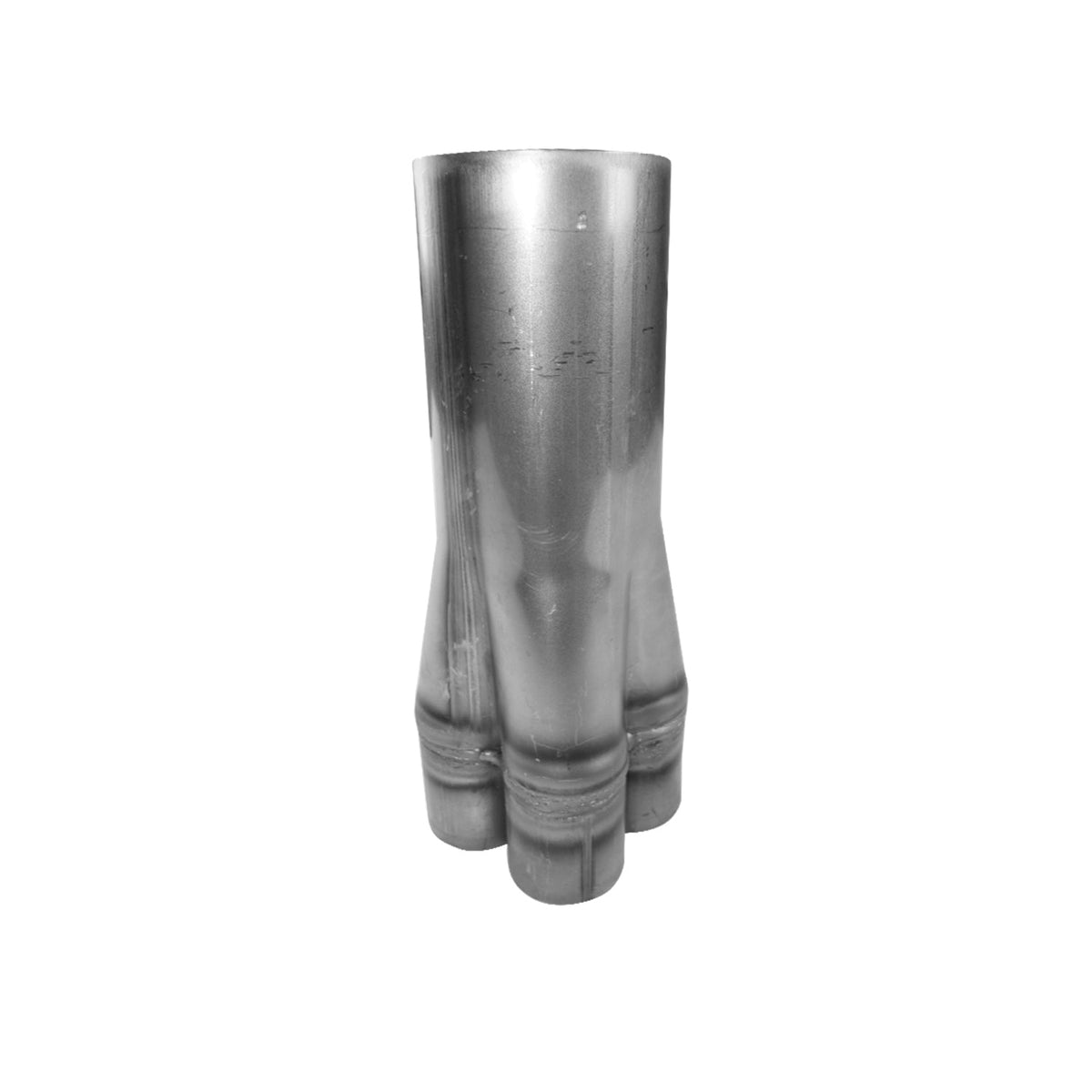

Finish a 1-7/8-inch-primary header with Kooks 9905S. Its four-into-one 304 stainless design includes the patented scavenging spike, with a 3-inch outside-diameter outlet to connect to the exhaust you are making.
SKU: 9905S
A slip fit over the primary tubes
The primary inlets are 1-7/8-inch inside diameter, sized to slip over matching outside-diameter primary tubes. Two A/B-style tabs are supplied to secure the collector to those tubes.
Order for the actual header layout
Each item is one collector. Choose the quantity needed for your fabricated headers and have the collector joints aligned before final welding or assembly.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 9905S |
| Application | Custom header fabrication; single collector |
| Primary inlet diameter | 1-7/8-inch inside diameter; slips over matching outside diameter primary tubes |
| Collector outlet diameter | 3-inch outside diameter |
| Collector design | Four-into-one with patented scavenging spike |
| Included | Two A/B-style tabs to secure collector to primaries |
| Material | 304 stainless steel |
Frequently asked questions
What size is the outlet?
The collector outlet is 3-inch outside diameter.
Are securing tabs included?
Yes. Two A/B-style tabs are included with each individual collector.
