Know the landed cost before you order
Prices include VAT. Shipping is charged separately and calculated at checkout for your destination. If no shipping option is shown, contact us for a quote before ordering.
Finish your custom exhaust with a turnout

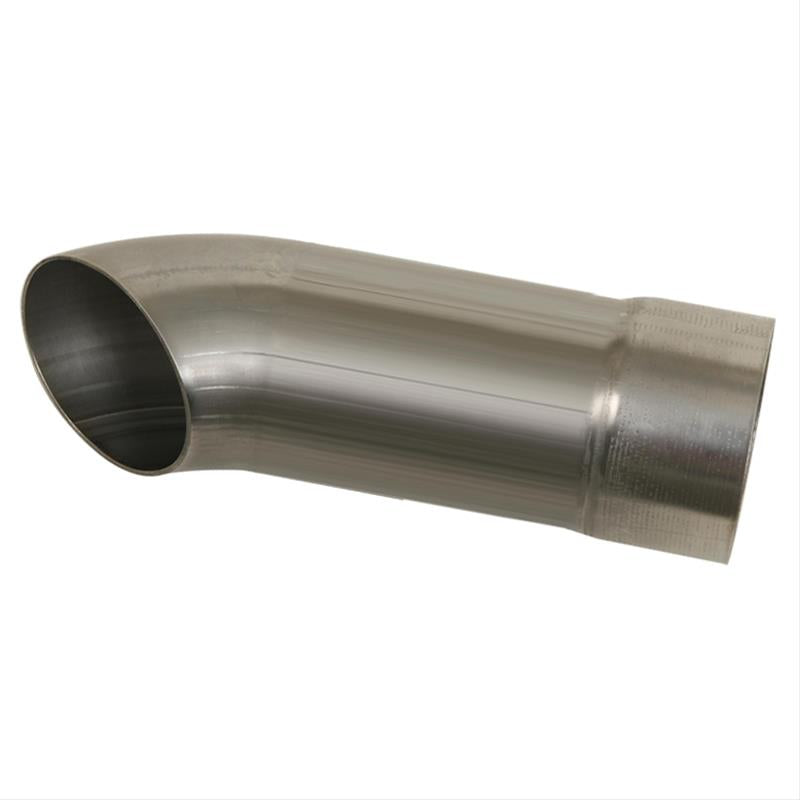

Give the exit of your fabricated exhaust the shape you need with Kooks 9106. This 12-inch turnout is made from 16-gauge 304 stainless steel, with a 3-1/2-inch inside-diameter inlet to slip over a matching collector or pipe.
SKU: 9106
Choose the inlet for the pipe you have
The inlet measurement is inside diameter. Match it to the outside diameter of the collector or pipe, then have your fabricator position the turnout for the actual vehicle and exit clearance.
Make the joint for your installation
The turnout can be welded or secured with tabs. It is sold individually, so order the quantity required for your exhaust layout.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 9106 |
| Application | Custom exhaust fabrication; single turnout |
| Inlet diameter | 3-1/2-inch inside diameter; slips over matching collector or pipe |
| Overall length | 12-inch |
| Construction | 16-gauge 304 stainless steel |
| Assembly | Welded or secured with tabs |
Frequently asked questions
Is it supplied as a pair?
9106 is sold individually.
How is the turnout attached?
It can be welded or secured with tabs after the slip-fit inlet and exit position have been matched to the installation.
