Route your exhaust the way your car needs

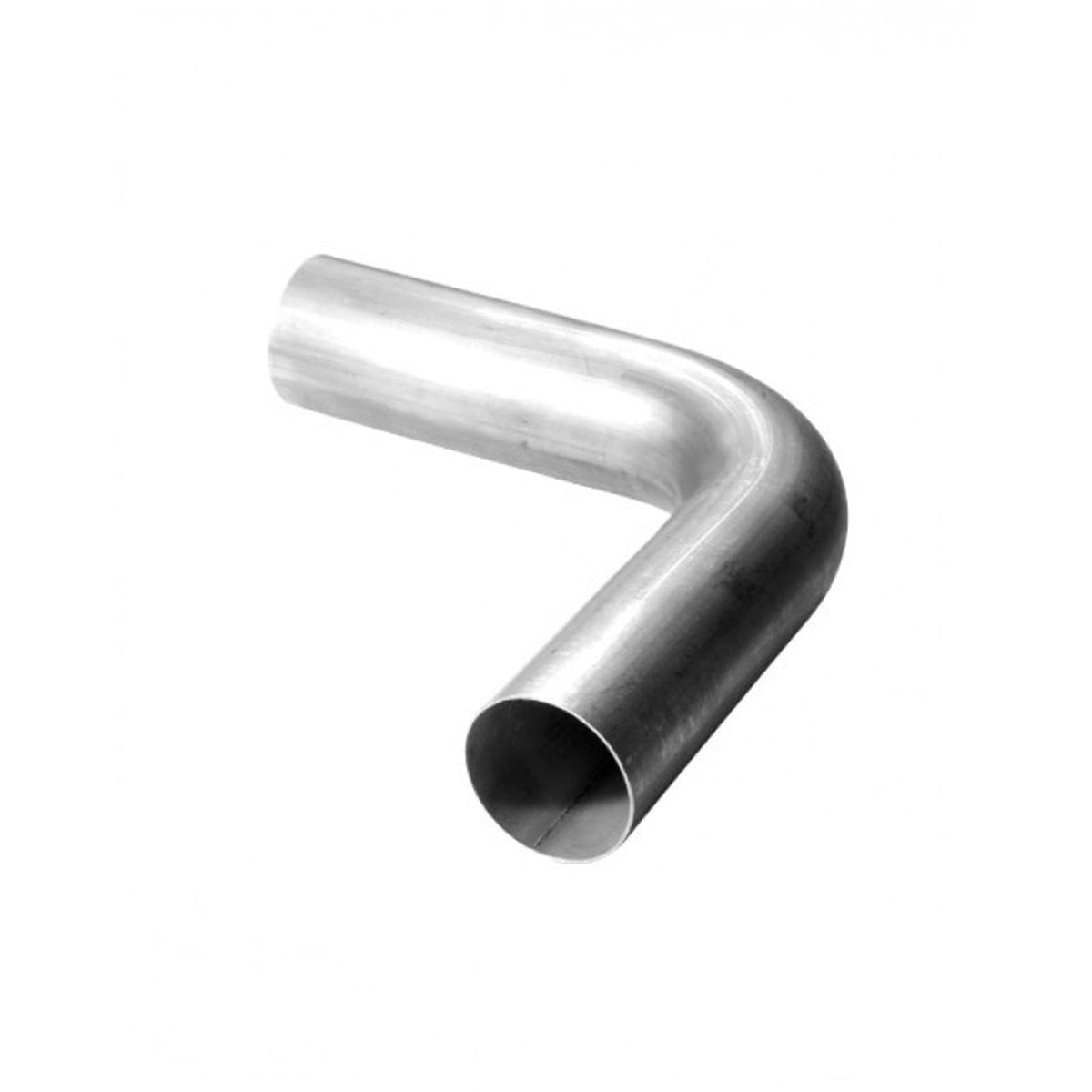

Work around your chassis and components with a 3-inch Kooks stainless bend. The 90 degrees shape and 3.00-inch centreline radius give your fabricator a defined section to use when laying out a custom exhaust or header tube.
SKU: 90-300-30-16-304
Mandrel-bent stainless tubing
The bend is made from 16-gauge 304 stainless steel using mandrel bending. Supporting the tube through the bend helps it retain its cross-section, giving your fabricator a useful starting point for a cleanly routed section.
Use the radius to plan the route
The 3.00-inch radius is measured to the centreline of the tube. Allow for the tube diameter as well when checking space around the bend. Position and trim the section to suit the route, then join it as part of the fabricated exhaust.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 90-300-30-16-304 |
| Tube diameter | 3-inch |
| Bend angle | 90 degrees |
| Centreline radius | 3.00-inch |
| Wall gauge | 16 gauge |
| Material | 304 stainless steel |
| Construction | Mandrel-bent |
Frequently asked questions
What does CLR mean?
Centreline radius: 3.00-inch measured to the centre of the tube through the bend. It is different from the overall space the bend occupies.
Is this a vehicle-specific fitting part?
It is a fabrication bend. Your fabricator positions, trims and joins it to suit the exhaust you are building.
