Add removable joints to your custom exhaust
A ball-and-socket connection lets a fabricated exhaust separate at a defined joint. The Kooks 7106S supplies the tubes, flanges and bolts for two matched 3" connections, helping your fabricator plan assembly and later access without making those sections permanently welded together.
SKU: 7106S
Parts for two matched joints

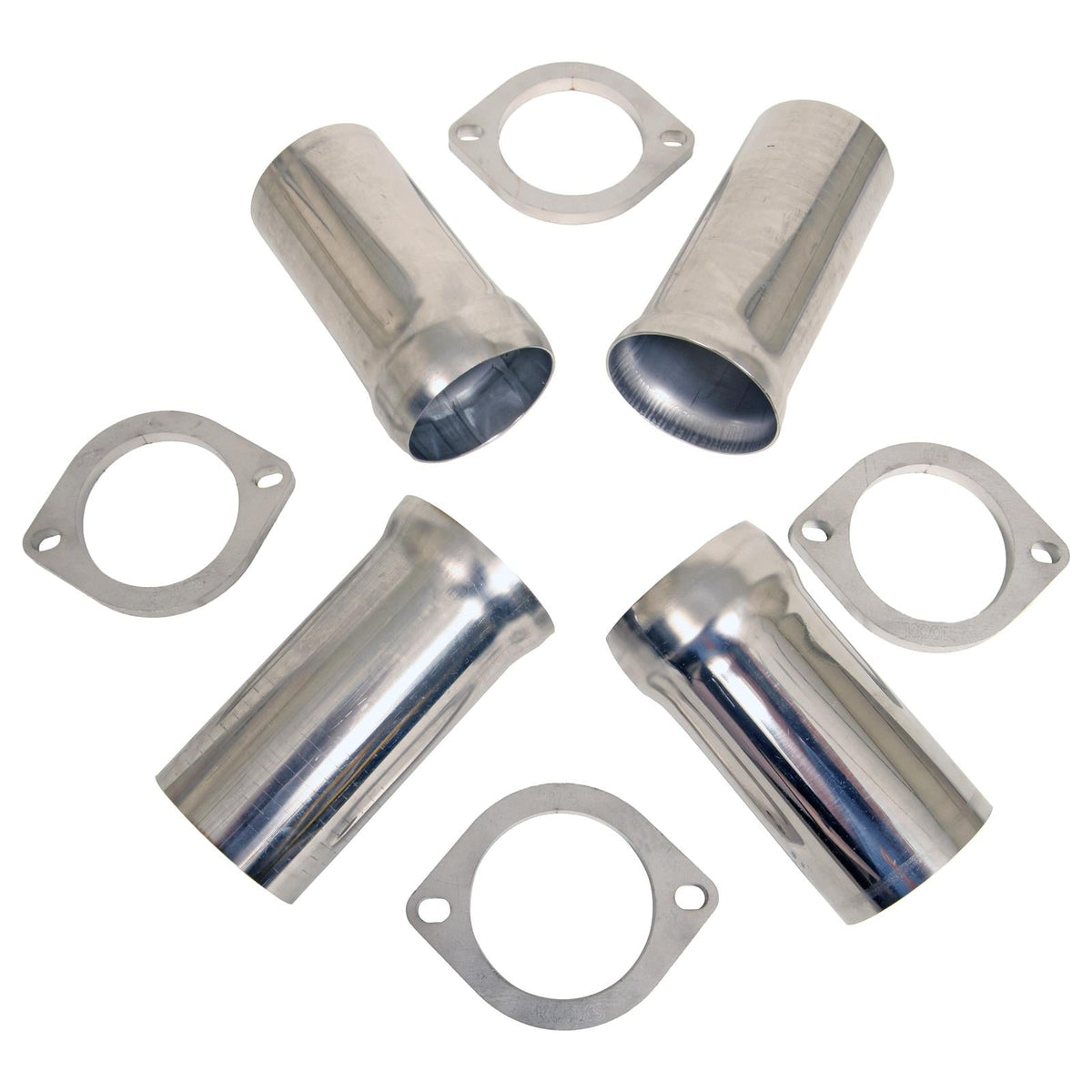

The kit contains two 6" flare tubes and two 6" ball tubes, with four 3" two-bolt flanges and the ball-and-socket bolt kit. The flare tubes are 3" outside diameter and 16 gauge. Pair the ball and flare parts for each joint.
Stainless fabrication components
The kit uses 304 stainless steel, including 3/8" laser-cut flanges. The installer still needs to fabricate the joints into the exhaust, align the pipes and support the system correctly.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 7106S |
| Material | 304 stainless steel |
| Joint size | 3" ball-and-socket connections |
| Flare tubes | Two 6" flare tubes; 3" outside diameter (OD), 16 gauge |
| Ball tubes | Two ball tubes, each 6" long, 3" outside diameter and 16-gauge stainless steel |
| Flanges | Four 3" two-bolt flanges; 3/8" laser-cut stainless |
| Hardware | One ball-and-socket bolt kit |
| Joint quantity | Components for two matched joints |
Frequently asked questions
Does the kit make one joint or two?
The two ball tubes, two flare tubes and four flanges provide the components for two matched joints.
Are bolts included?
Yes. The ball-and-socket bolt kit is supplied.
Can I bolt it into any existing exhaust without fabrication?
It is a fabrication kit. The tubes and flanges need to be joined into the exhaust layout.
