Match your Ford heads to the header bolt pattern

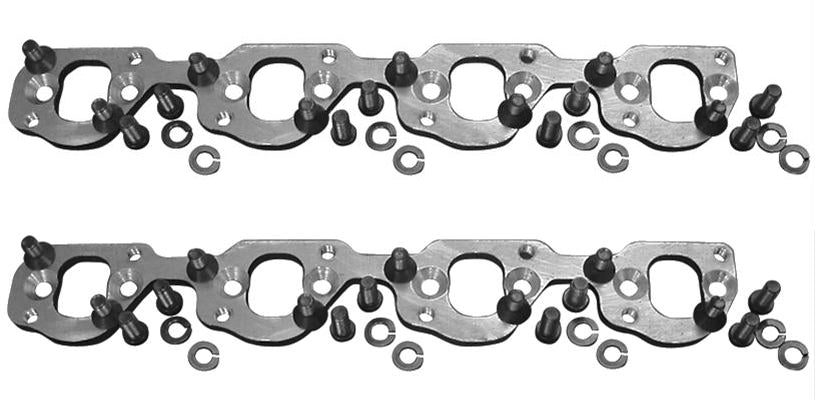

Use the headers with the bolt pattern your small-block Ford installation needs. Kooks 7010-KIT adapts the stock 2-inch inline cylinder-head pattern to the 2-3/4-inch diagonal header pattern, with gaskets and bolts for both mounting interfaces.
SKU: 7010-KIT
Two mounting patterns in one plate
The 3/8-inch-thick mild-steel plates have countersunk holes for mounting to the stock head and threaded holes for the diagonal-pattern header. Match the port opening and bolt pattern to the actual heads and headers before fitting.
Allow for the plate thickness
The adapter plate sits between the head and header. Your installer should account for that 3/8-inch thickness when checking header position and nearby chassis clearance.
Ordering and delivery
Estimated lead time is 4-6 weeks. Delivery may be faster depending on stock levels. Shipping is charged separately.
Technical specifications
| Specification | Details |
|---|---|
| SKU | 7010-KIT |
| Application | Small-block Ford cylinder head / header bolt-pattern adaptation |
| Cylinder-head pattern | 2-inch inline stock bolt pattern |
| Header pattern | 2-3/4-inch diagonal bolt pattern |
| Plate thickness | 3/8-inch |
| Material | Mild steel |
| Plate detail | Countersunk head mounting holes; threaded header mounting holes |
| Included | Gaskets and bolts for both mounting interfaces |
Frequently asked questions
Which direction does the adapter work?
It bolts to the stock 2-inch inline head pattern and provides threaded holes for a 2-3/4-inch diagonal header pattern.
Are the gaskets and bolts included?
Yes. The kit includes the gaskets and bolts for the head-to-plate and plate-to-header interfaces.
