Funk Motorsport IHI TD05-20G Turbo Blanket – Turbo Heat Management

Funk Motorsport IHI TD05-20G Turbo Blanket Overview

The Funk Motorsport IHI TD05-20G Turbo Blanket is purpose-built for IHI TD05-20G turbochargers, providing advanced heat management for demanding motorsport, off-road, and performance street applications. Designed with Funk Motorsport’s signature four-layer construction, this turbo blanket is engineered to support efficient turbo operation while protecting surrounding engine bay components from excessive heat.

How the IHI TD05-20G Turbo Blanket Works

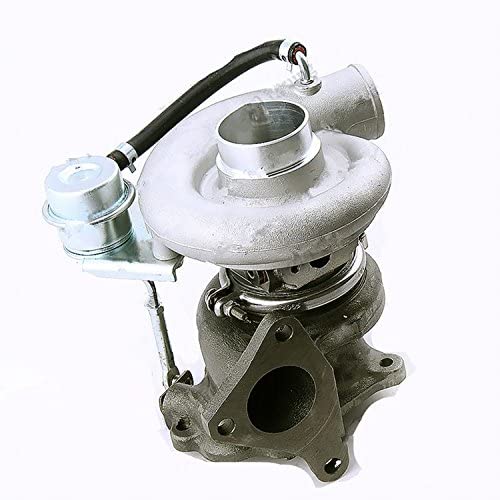

This turbo blanket insulates the turbine housing of the IHI TD05-20G, helping to contain extreme temperatures generated during boost. By reducing radiant heat transfer, the blanket minimises heat soak into the engine bay, which can otherwise degrade wiring, hoses, and intake components. The result is a cooler, safer, and more reliable environment for both the turbocharger and neighbouring systems.

Where the Funk Motorsport Turbo Blanket Excels

The IHI TD05-20G Turbo Blanket is ideal for builds where:

• Turbocharger proximity to sensitive components demands superior thermal protection
• High-performance or track use leads to sustained elevated exhaust temperatures
• Engine bay temperatures must be controlled for reliability and efficiency
• Routine turbo maintenance is required, thanks to the blanket’s removable design

This product is suited to enthusiasts, racers, and off-roaders running the IHI TD05-20G turbo who want to maximise performance while protecting their investment.

Key Benefits of the Funk Motorsport IHI TD05-20G Turbo Blanket

• Engineered specifically for the IHI TD05-20G turbocharger
• Four-layer construction for enhanced thermal insulation
• Helps lower engine bay temperatures and protect critical components
• Supports turbocharger efficiency and reduces heat soak

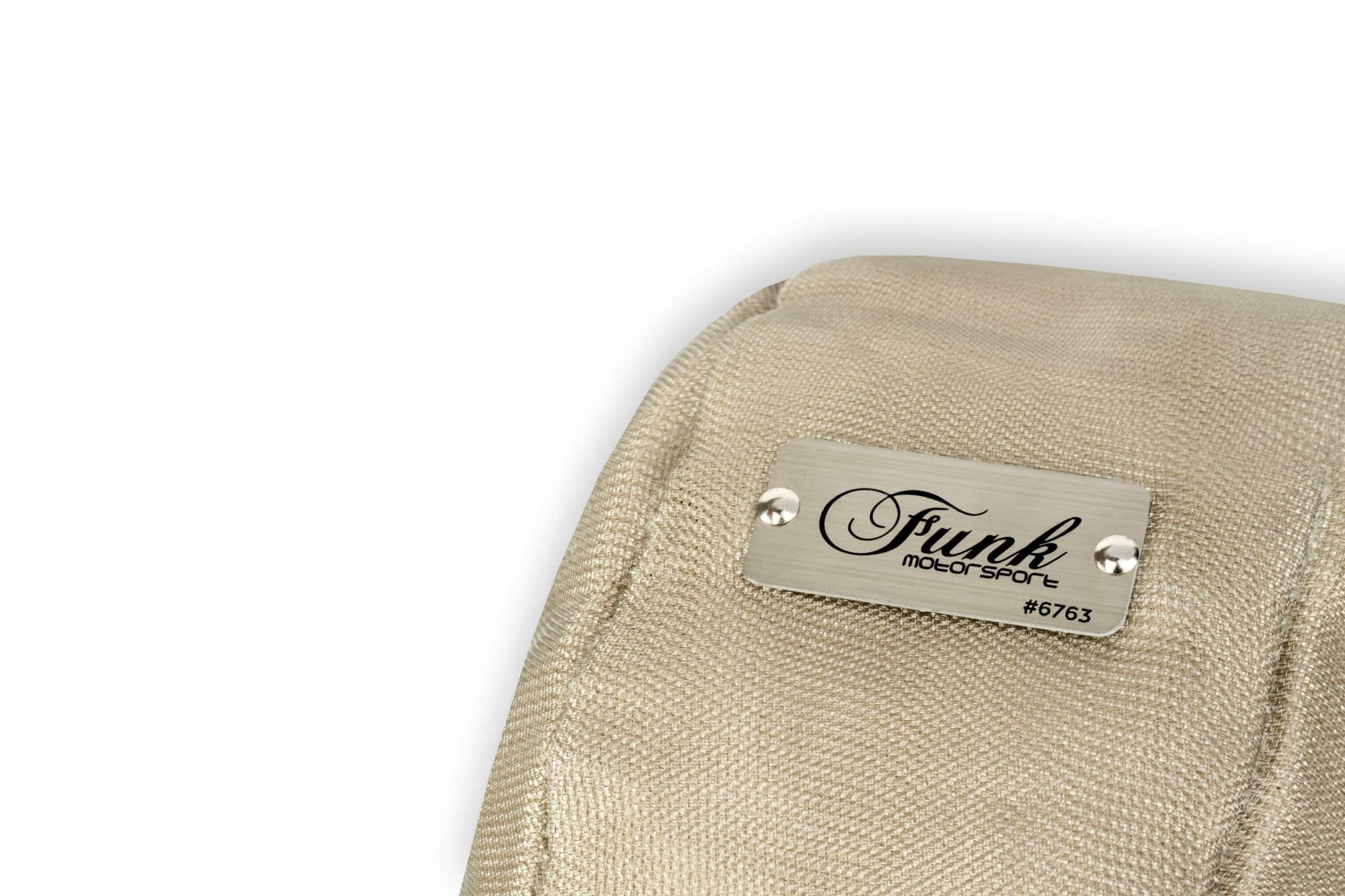

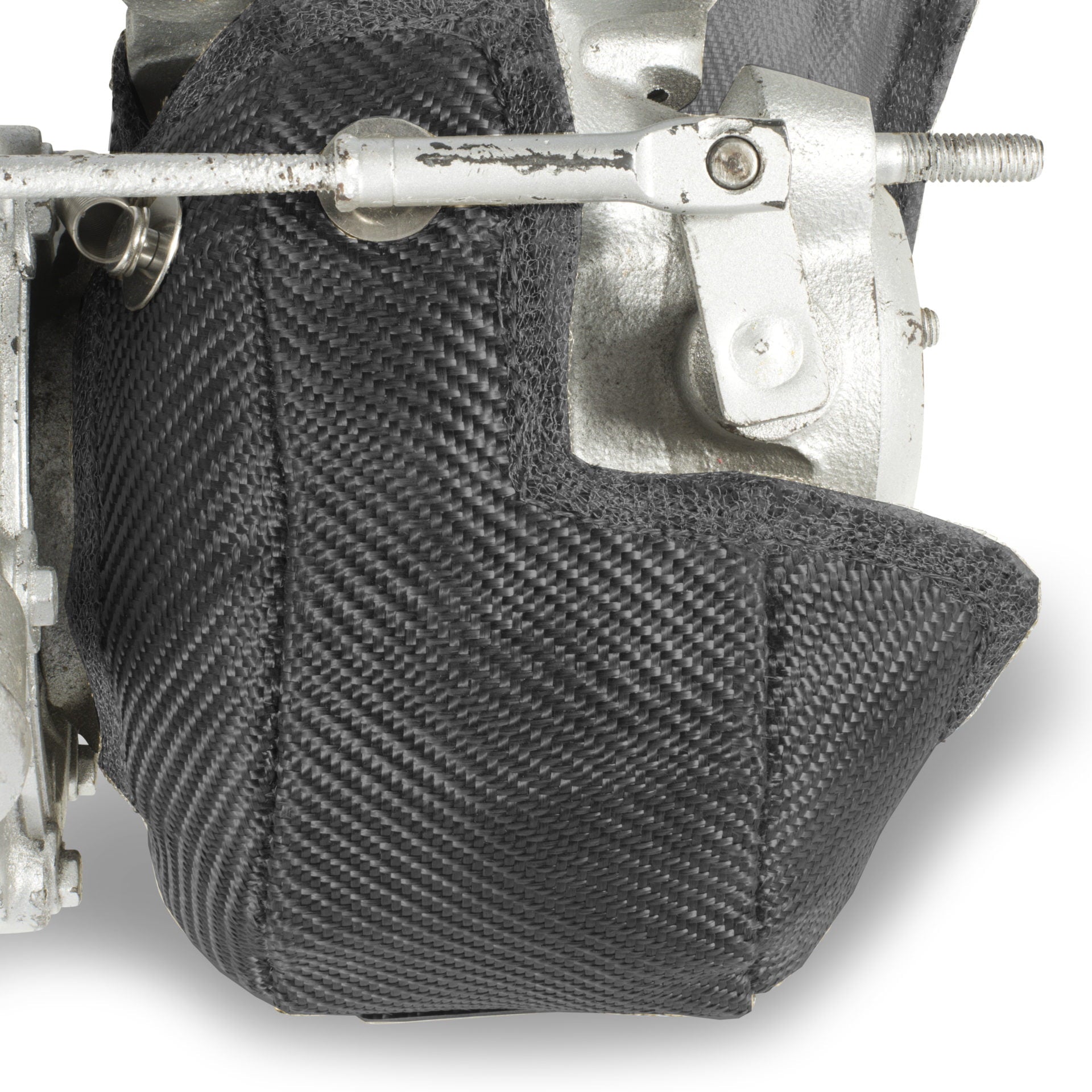

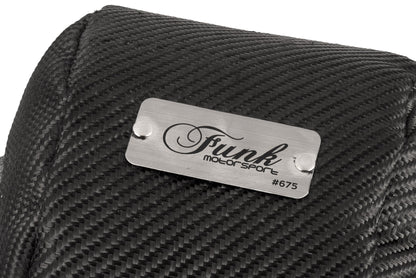

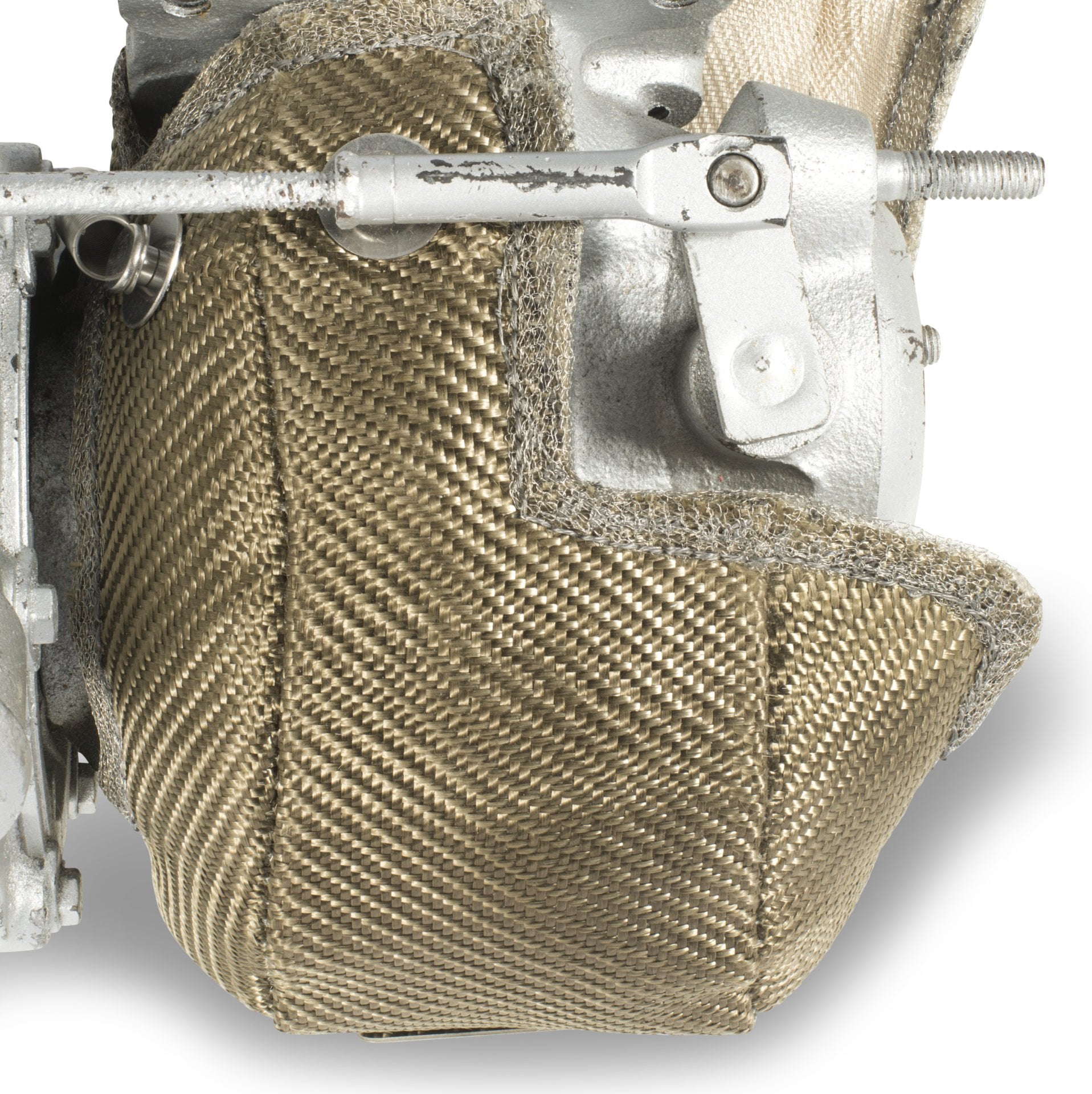

• Available in Titanium, Carbon Fibre, and Inside Out finishes to suit different build preferences

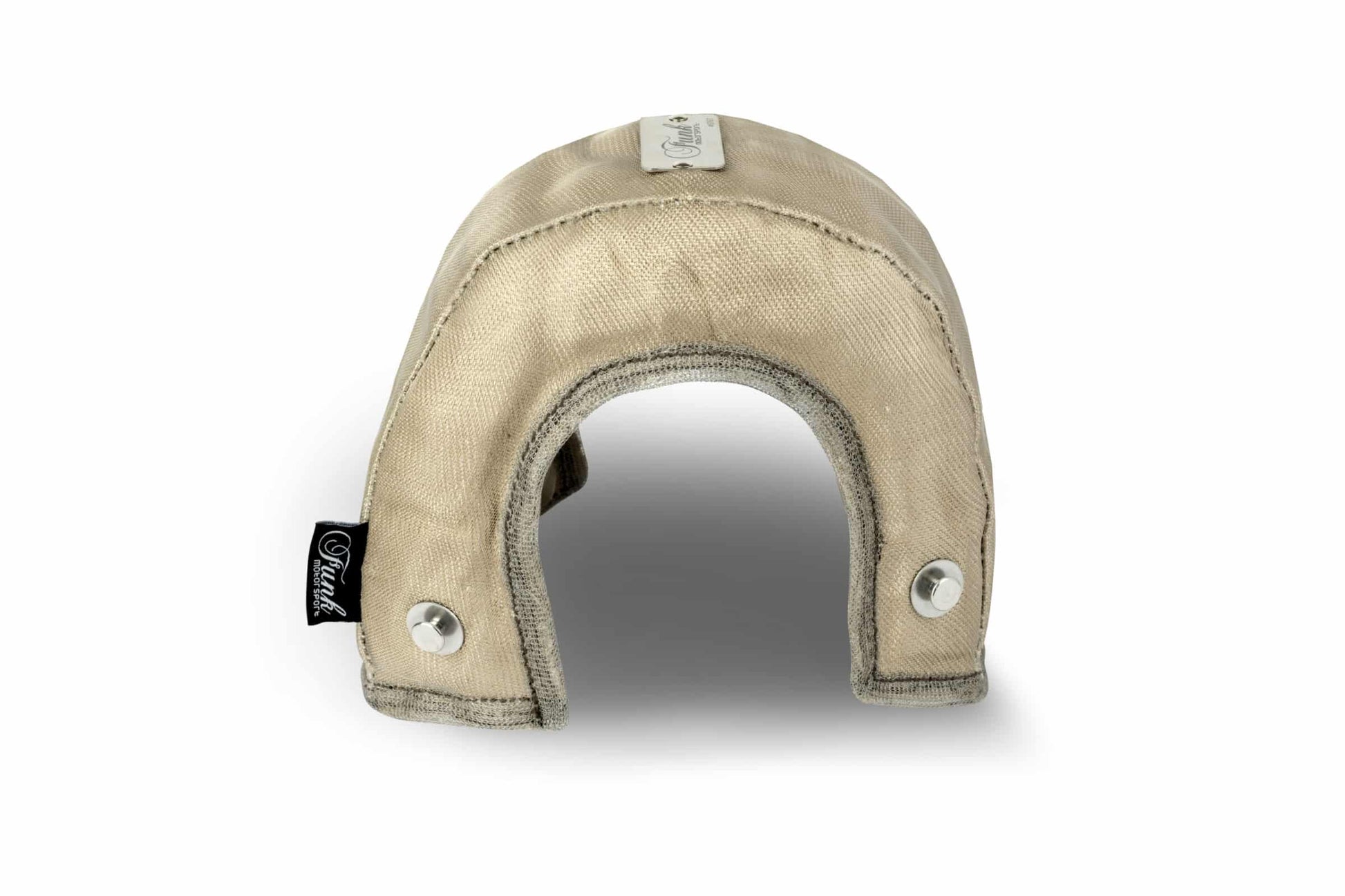

• Removable design allows for easier turbo maintenance

Construction and Material Options

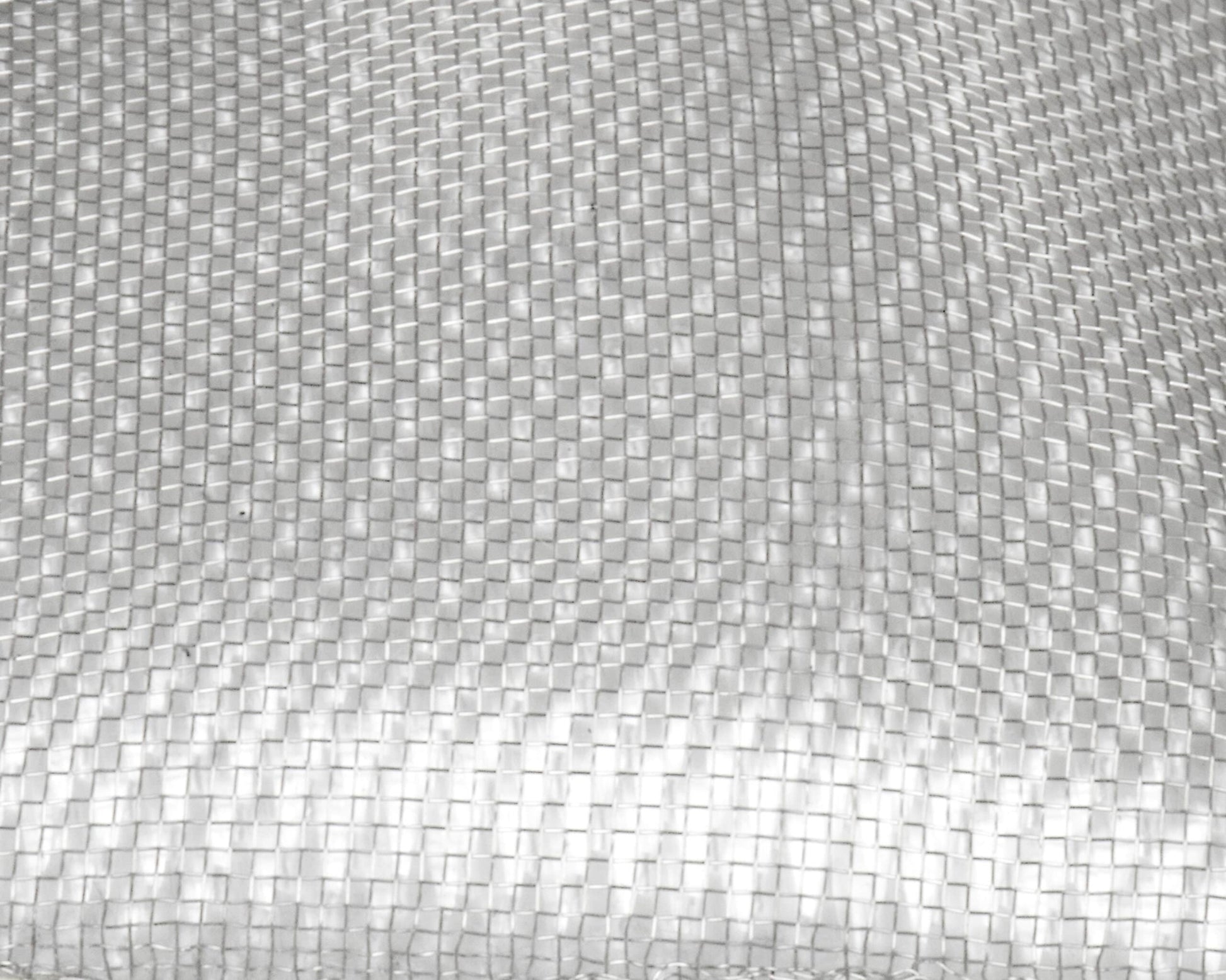

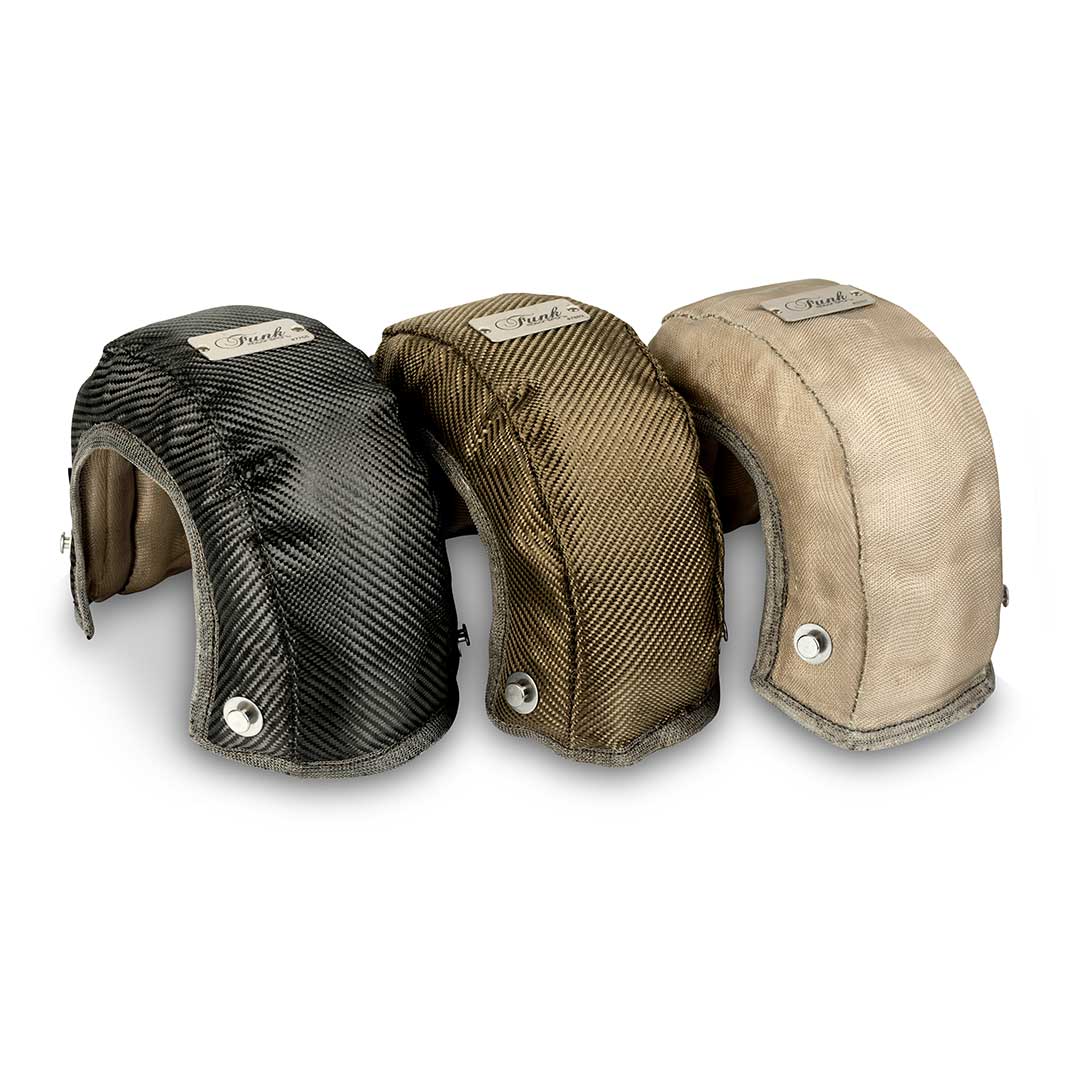

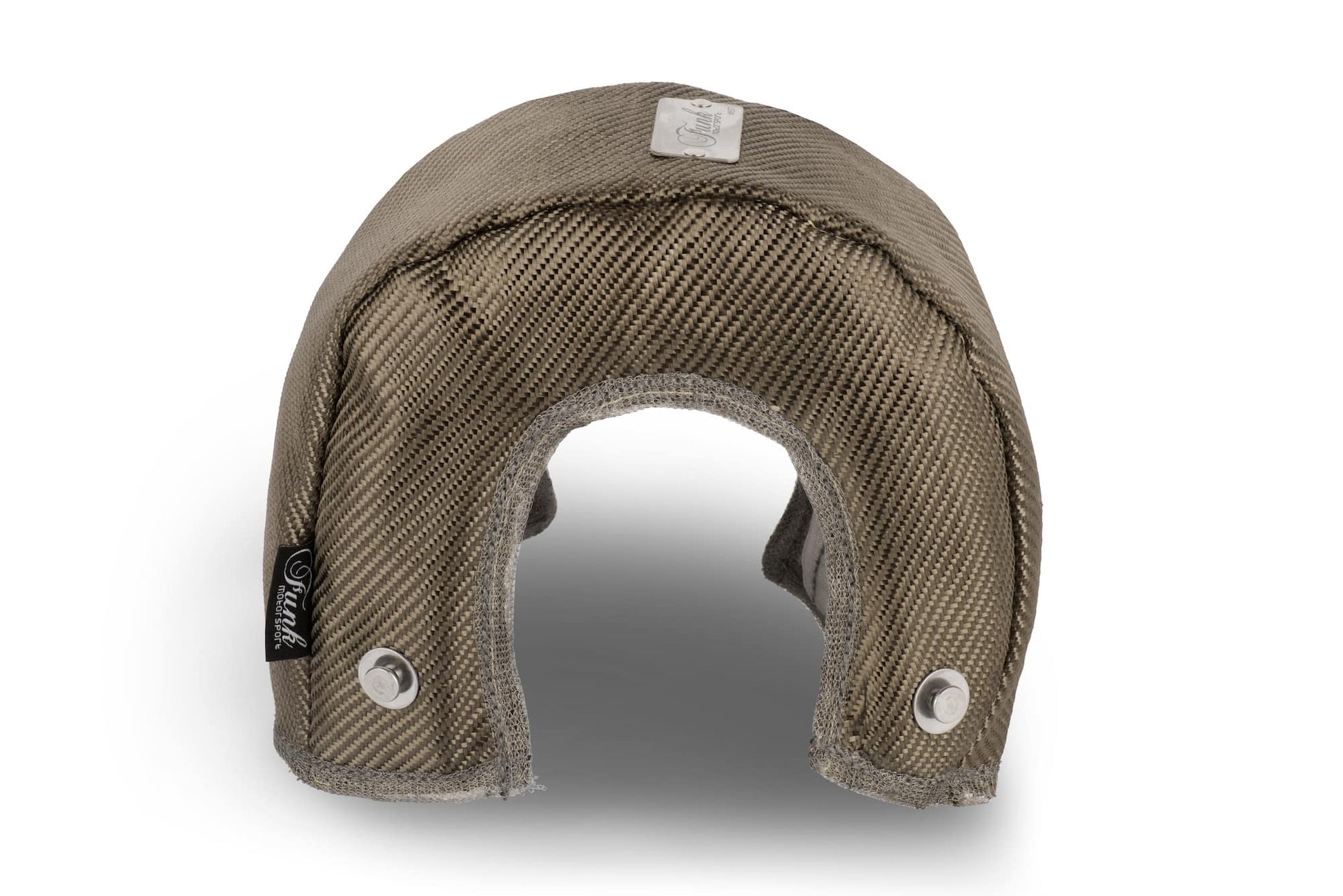

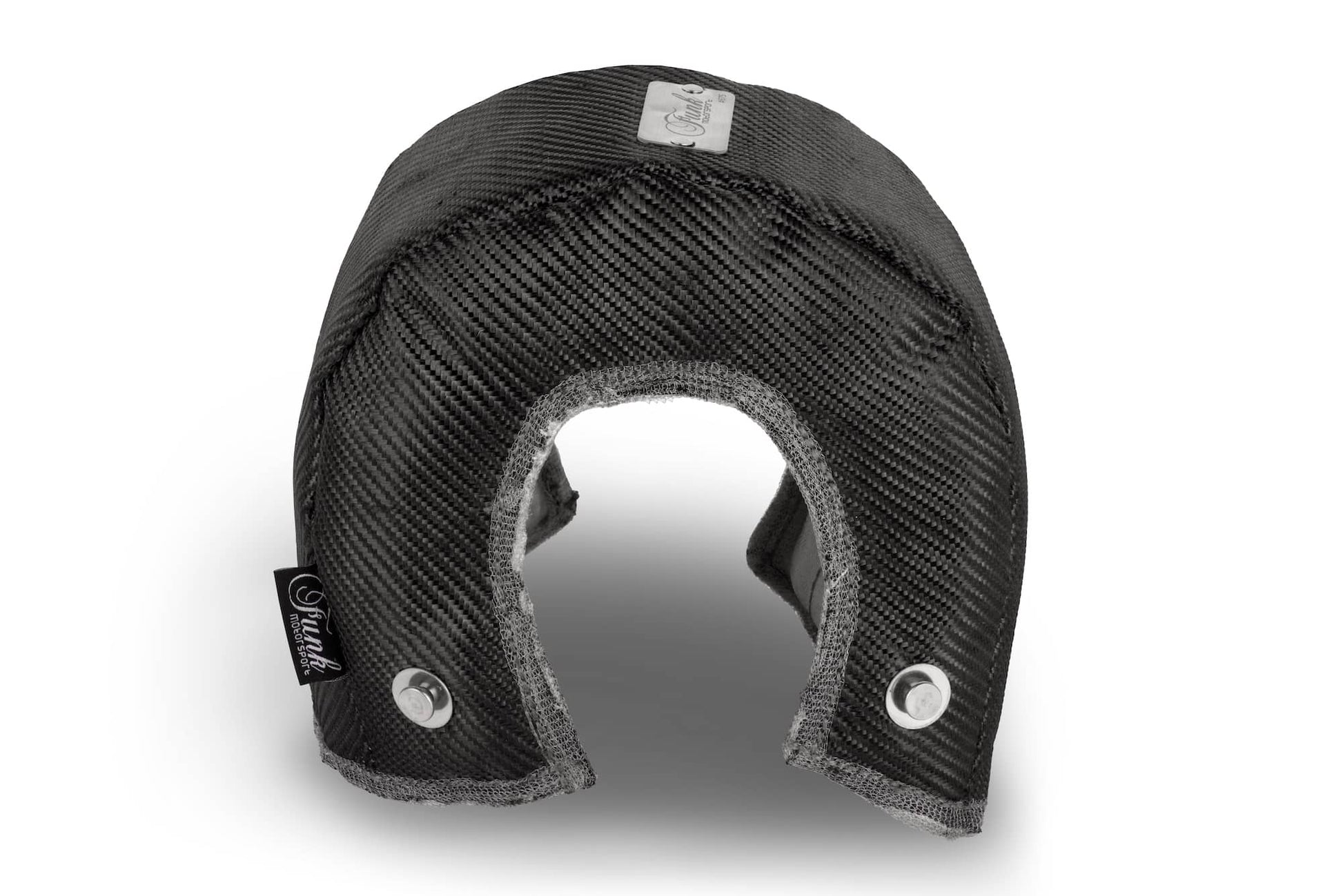

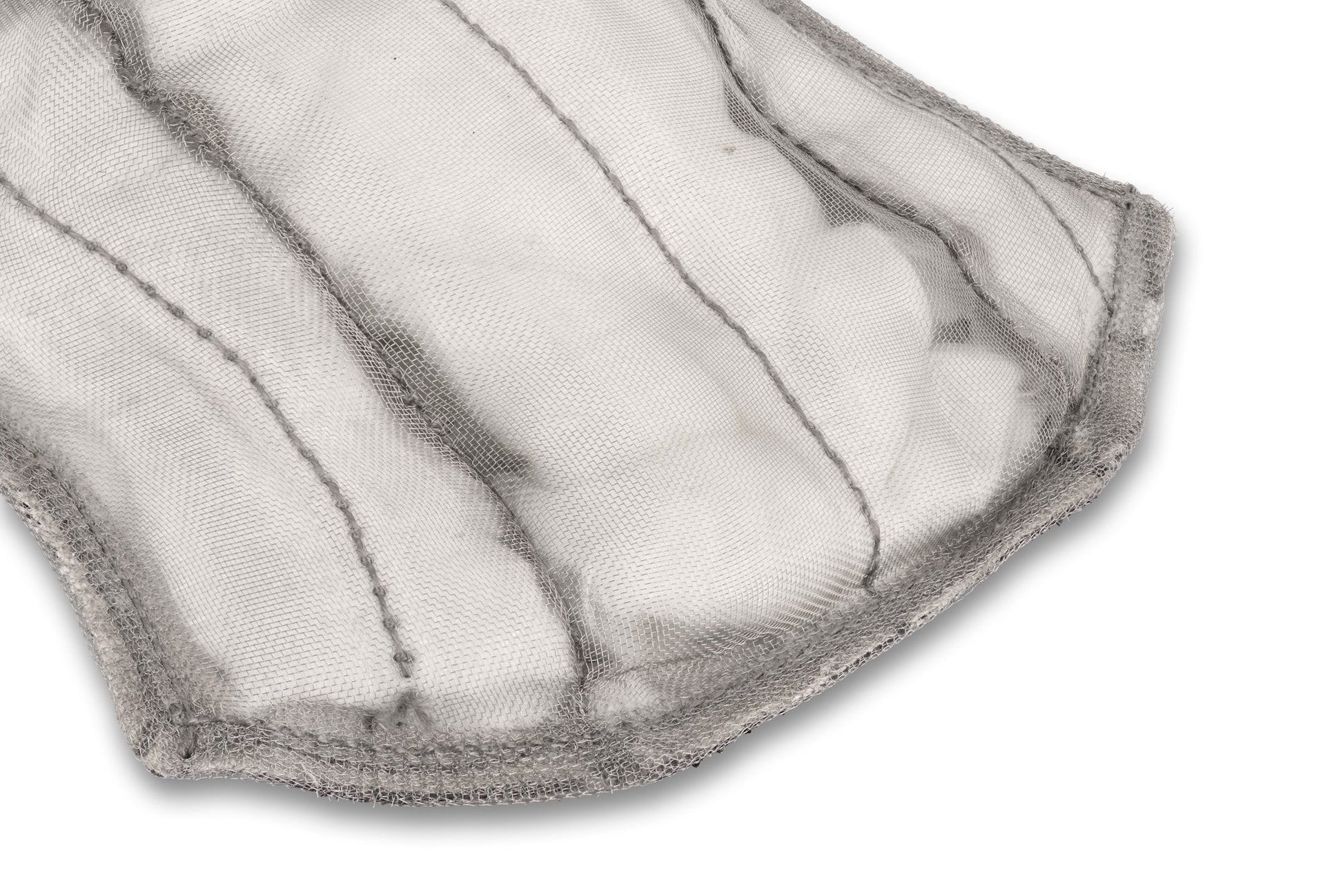

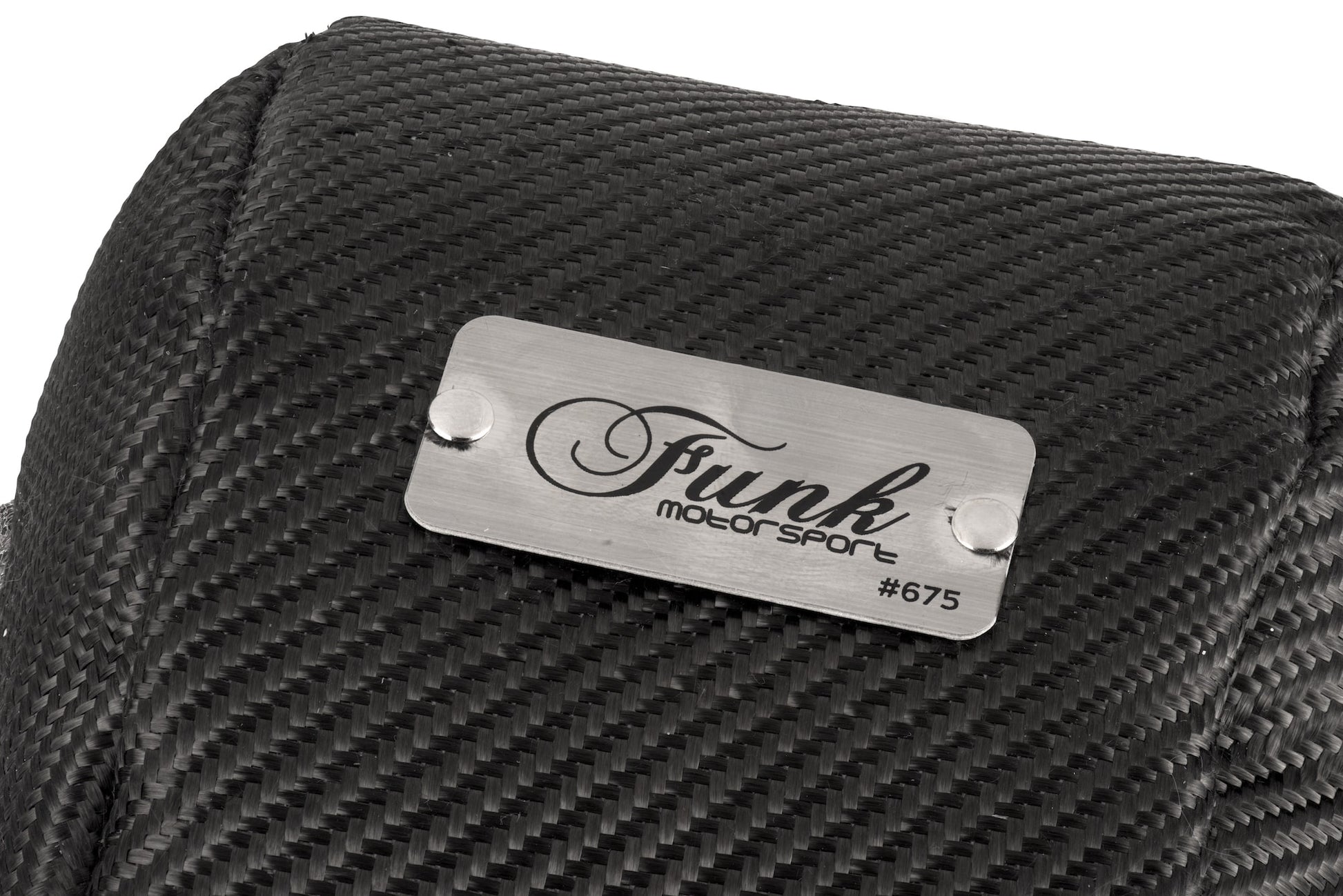

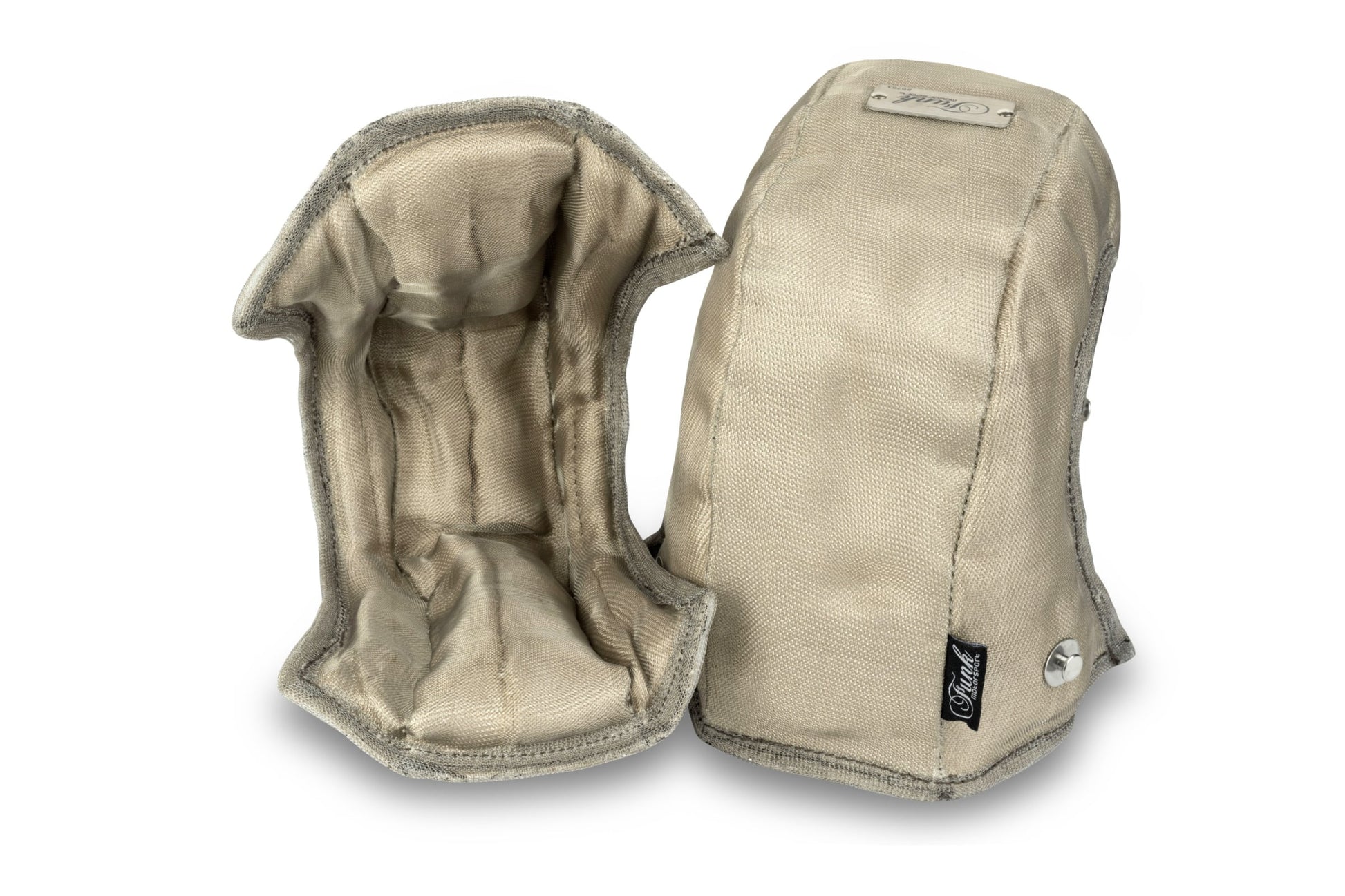

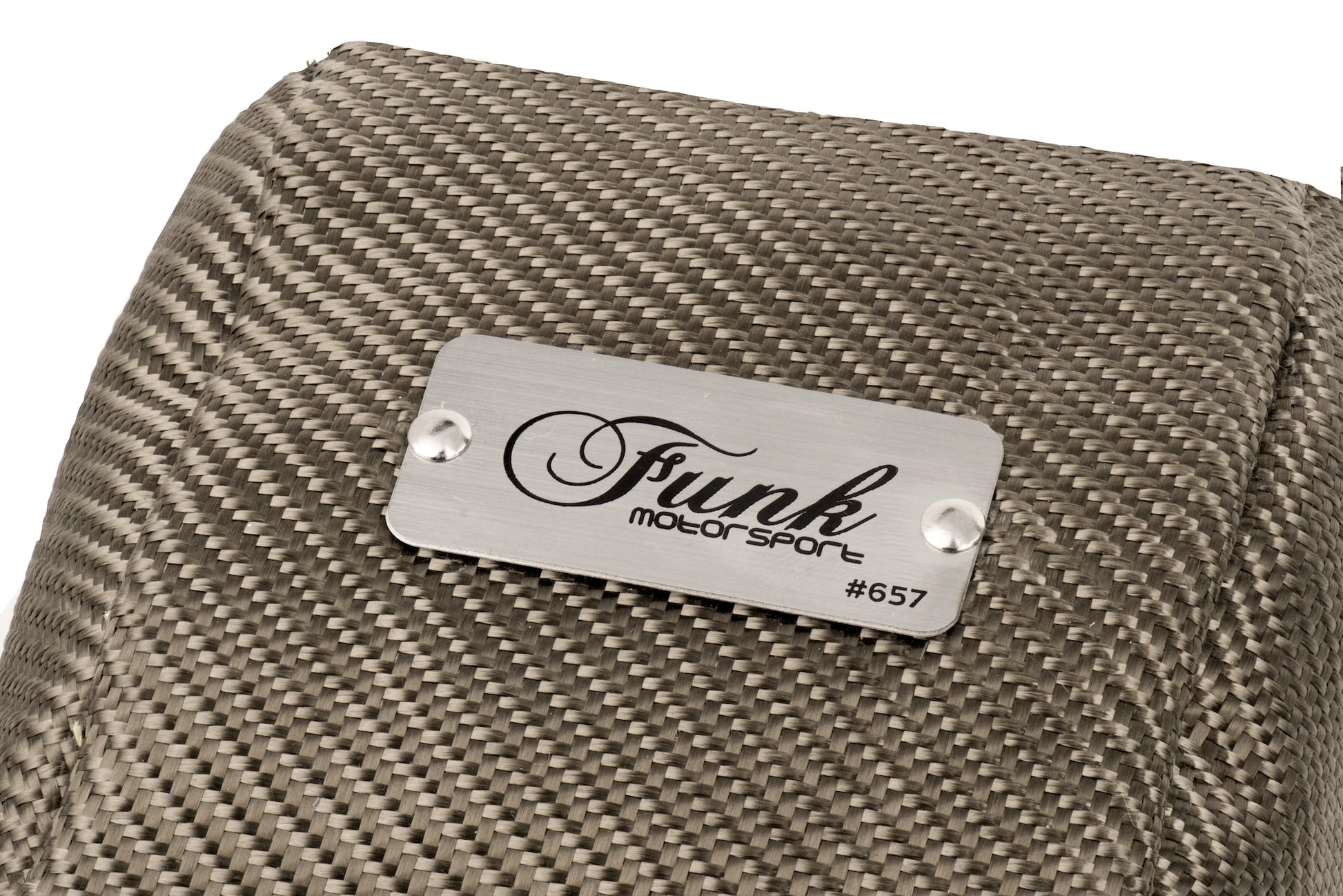

Funk Motorsport’s turbo blankets are available in three premium finishes: Titanium, Carbon Fibre, and Inside Out. Each variant utilises a proprietary four-layer construction, designed to deliver up to three times the thermal protection of standard turbo blankets. This robust build ensures reliable performance under extreme conditions, whether on the road, track, or trail.

Installation and Usage Notes

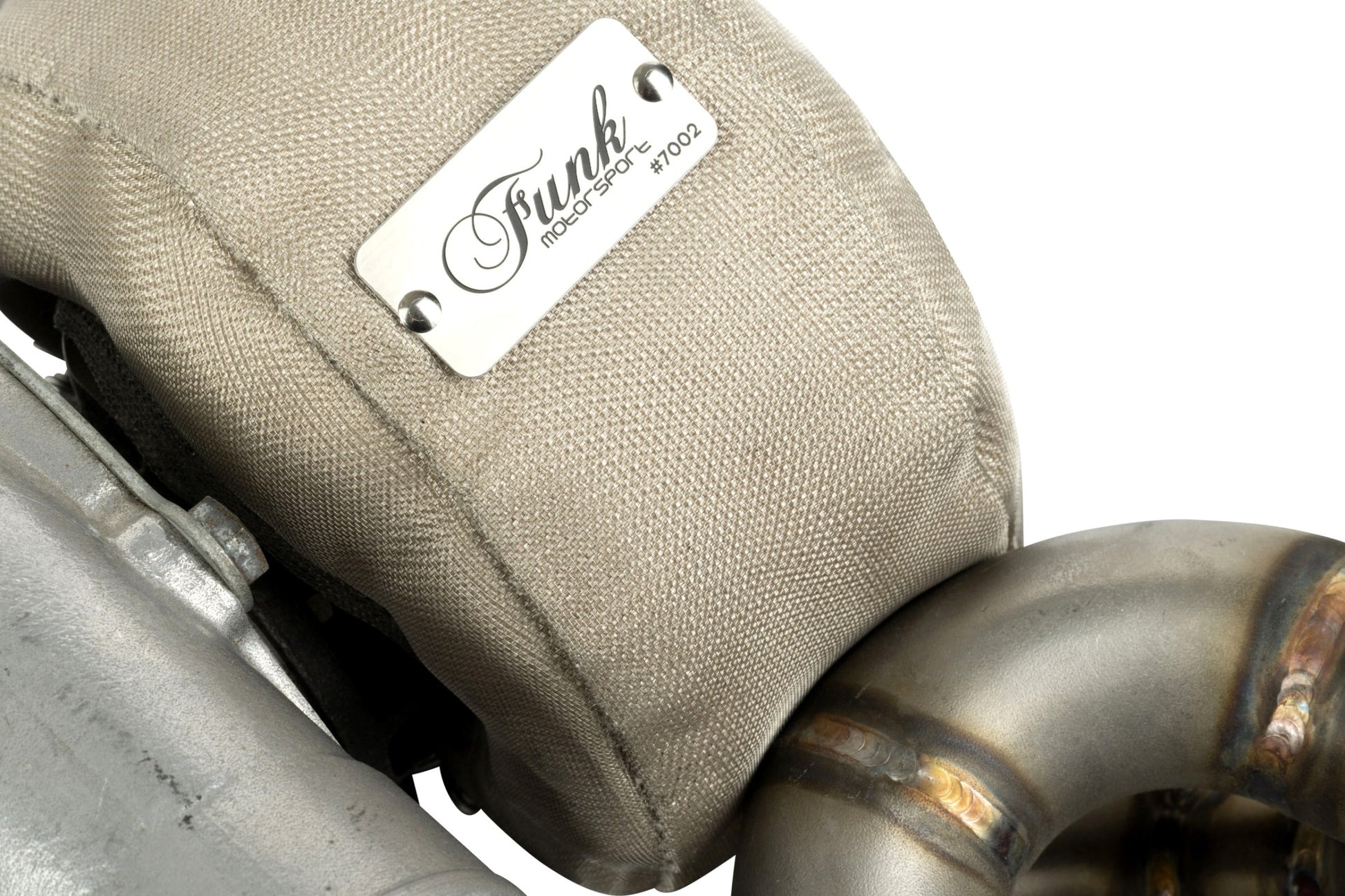

The blanket is designed for straightforward installation on IHI TD05-20G turbochargers. Its removable feature allows for routine inspection and maintenance of the turbo without compromising the integrity of the heat shield. Always confirm turbo model and fitment before installation to ensure optimal performance and protection.

Technical Specifications

Frequently Asked Questions – IHI TD05-20G Turbo Blanket

What problem does the Funk Motorsport IHI TD05-20G Turbo Blanket solve?

It helps contain turbo heat within the turbine housing, reducing engine bay temperatures and protecting nearby components from heat damage.

Is this turbo blanket compatible with all IHI TD05-20G turbos?

This blanket is specifically designed for the IHI TD05-20G model. Always verify your turbo model before purchase to ensure correct fitment.

What are the available finish options?

You can choose from Titanium, Carbon Fibre, or Inside Out finishes to match your build’s requirements and style.

Can the turbo blanket be removed for maintenance?

Yes, the Funk Motorsport design allows for easy removal, enabling routine turbo inspection and servicing without damaging the blanket.

Who should consider installing this turbo blanket?

It is ideal for performance enthusiasts, track day drivers, and off-roaders running the IHI TD05-20G turbo who need reliable heat management and engine bay protection.

Does the blanket require special tools for installation?

No special tools are required; however, ensure the turbo is cool before installation for safety.
