ARB

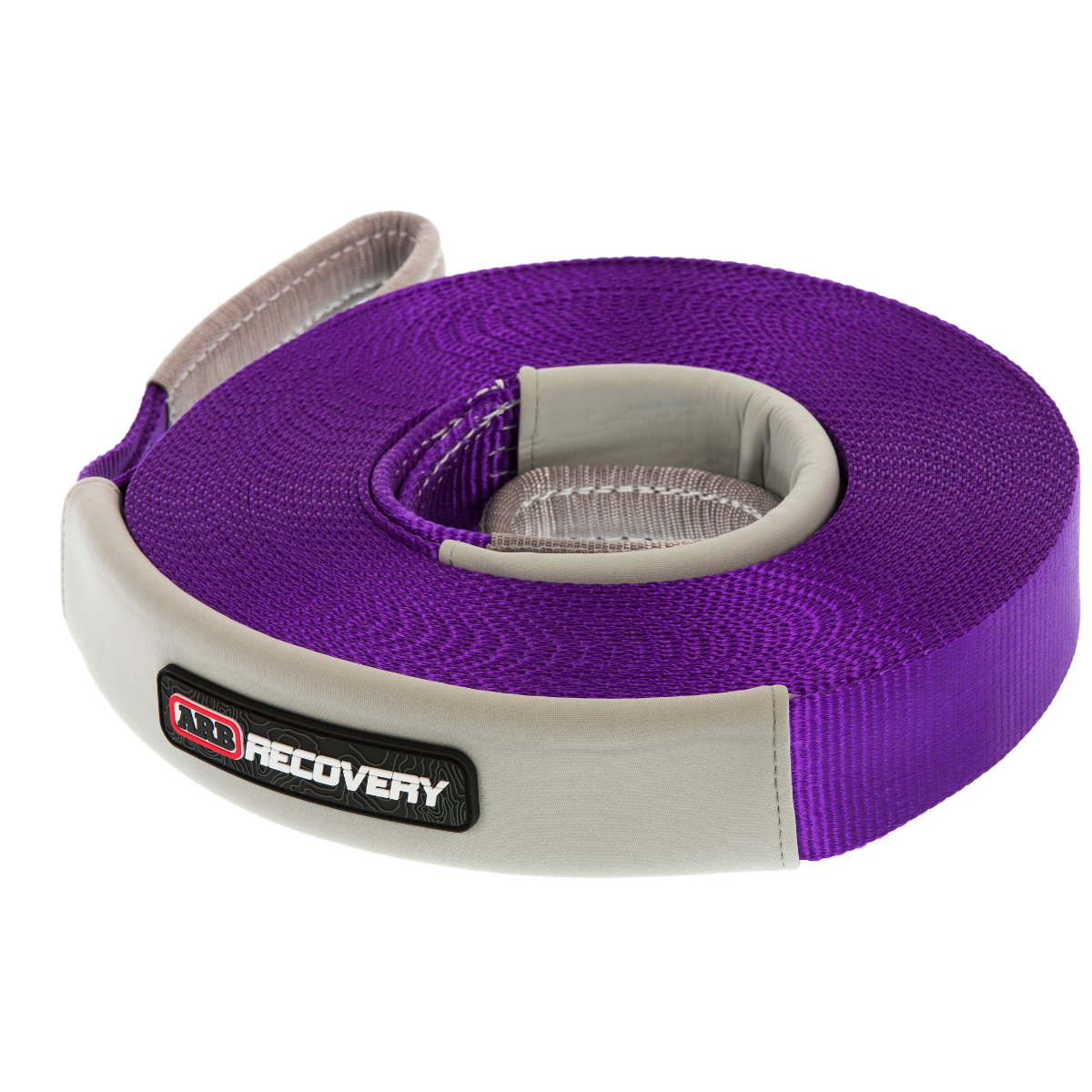

ARB Winch Extension Strap - 20m, 4500kg or 8000kg MBS

Universal fit
$164.00 $182.00 Save $18.00 VAT included. Shipping calculated for your destination.

Available to Order

Not sure which one? Ask us to confirm fitment first →
Delivery, customs and taxes Know the landed cost before you order

For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. Outside the UK, shipping is shown at checkout and local customs and taxes remain your responsibility.

Lead times and urgent orders Check timing before you commit

Some products are made to order, imported or custom built. If timing matters, contact us before ordering and we will confirm the expected delivery timeframe.

Fitment checked before you order

Send the vehicle, engine and current setup if you want us to confirm the exact application before checkout.

Technical specifications
Specification Details
Manufacturer ARB
SKU XRRARB725 / XRRARB720
Length 20m
Material 100% polyester
Design Low stretch for winch extension
ARB720 rating / width 4500kg minimum breaking strength / 55mm
ARB725 rating / width 8000kg minimum breaking strength / 80mm
Ends Reinforced eyes with protective sleeves
Rating meaning Minimum breaking strength; not a working load limit

Reach the anchor when your winch line falls short

The best anchor is not always close enough for your winch line. This 20m ARB winch extension strap adds reach for a properly planned winch recovery, with two strength options to match the equipment and recovery loads.

Your options

Option SKU
8000kg XRRARB725
4500kg XRRARB720

Made for winching rather than a snatch recovery

The 100% polyester construction is a low-stretch design for extending a winch line. Reinforced eyes and protective sleeves help manage wear at the connection points. Keep it clear of sharp edges and use suitable rated attachments throughout the recovery.

Choose the right strength option

ARB720 has a 4500kg minimum breaking strength and 55mm width. ARB725 has an 8000kg minimum breaking strength and 80mm width. These are breaking-strength figures, rather than working load limits or vehicle weight ratings.

Look after the strap between uses

Inspect the webbing, stitching and eyes before use, then clean and dry the strap before storage. A tree trunk protector is a relevant separate item when using a suitable tree anchor; each part of the recovery needs its own correctly rated connection.

Technical specifications

Specification Details
Manufacturer ARB
SKU XRRARB725 / XRRARB720
Length 20m
Material 100% polyester
Design Low stretch for winch extension
ARB720 rating / width 4500kg minimum breaking strength / 55mm
ARB725 rating / width 8000kg minimum breaking strength / 80mm
Ends Reinforced eyes with protective sleeves
Rating meaning Minimum breaking strength; not a working load limit

Frequently asked questions

Which strength do I need?

Select the strap for the expected recovery load and the ratings of your complete winch recovery system. The 4500kg and 8000kg figures are minimum breaking strengths, not a vehicle weight allowance.

Is this a snatch strap?

It is a low-stretch winch extension strap. A snatch strap has a different construction and purpose for a properly controlled vehicle-assisted recovery.

Can I use it directly around a tree?

Choose the appropriate tree trunk protector and anchor connection for that job. Keep the extension strap in its intended winch-line extension role.

Delivery, customs and taxes

Know the landed cost before you order

For UK customers, prices include VAT, customs and delivery unless checkout states otherwise. For customers outside the UK, local customs and taxes remain your responsibility, and shipping is shown at checkout. If a shipping option is not available, email us and we will prepare a tailored quote.

Lead times and urgent orders

Check timing before you commit

Many of the products we sell are made to order, imported or custom built, so a lead time may apply. If you need a part urgently, contact us before ordering and we will confirm the expected delivery timeframe and process.

Fitment first

Universal product - confirm the application

Check dimensions, mounting points, clearance and any wiring or hose requirements against your setup before ordering.

Universal fit
Need help with this product?

Send us your vehicle, year, current setup and any fitting date, event, trip or deadline before ordering. We will help check fitment, product choice and timing.

ARB Winch Extension Strap - 20m, 4500kg or 8000kg MBS
