| Specification | Details |
|---|---|
| Manufacturer | ARB / Proform |
| SKU | XE4FA10058862 |
| Manufacturer part number | 10058862 |
| Size choice | Medium width |
| Minimum usable rear load-bed width | 1205mm |
| Minimum usable load-bed length | 1415mm |
| Maximum load | 250kg |
| Construction | Rigid HDPE with TPE-capped non-slip upper surface |
| Handling | Integrated side handles; raised rim |
| Product weight | 8kg |
| Installation | No drilling or fastening |
| Movement | Manual sliding mat; load and bed surface affect pulling effort |

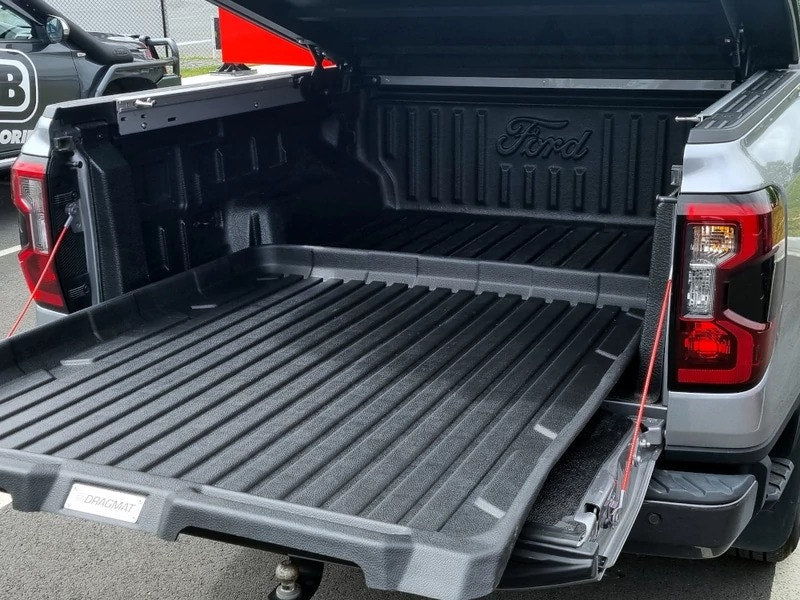

Getting a heavy box out of a pickup should not mean climbing over everything else. The Proform DragMat lets you pull the load towards the tailgate on a rigid sliding mat, making tools, bags and camping equipment much easier to reach. Lift it out when you want the whole load bed back, with no permanent runners or drilled fixings left behind.
SKU: XE4FA10058862
The rigid HDPE base slides across the load bed while the TPE-capped top helps grip the items resting on it. Built-in side handles give you a place to pull, and the raised rim helps contain small items and dirt. The mat is rated for up to 250kg and is designed to move loads of more than 100kg; the effort involved depends on the load, its distribution and the surface beneath it.
Secure cargo appropriately for driving. The non-slip top and raised rim are useful tray features, rather than replacements for suitable load restraints.
This is the medium version. Allow at least 1205mm of usable width at the rear of the load bed and 1415mm of usable length. Measure the space with your bed liner and other equipment in place, including the narrowest areas the tray needs to pass through.
The wide DragMat is a separate size, measuring 1315mm wide at the rear x 1410mm long. Choose by the actual available space, rather than by the pickup name alone.
The DragMat weighs 8kg and needs no drilling or fastening to install. That makes it convenient if you use the same pickup for work during the week and family trips at the weekend. Remove loose grit from beneath the mat and keep the sliding surfaces clean so it can move freely.
Its simple construction is especially appealing when you want easier access without fitting a full rail-mounted load slide.
| Specification | Details |
|---|---|
| Manufacturer | ARB / Proform |
| SKU | XE4FA10058862 |
| Manufacturer part number | 10058862 |
| Size choice | Medium width |
| Minimum usable rear load-bed width | 1205mm |
| Minimum usable load-bed length | 1415mm |
| Maximum load | 250kg |
| Construction | Rigid HDPE with TPE-capped non-slip upper surface |
| Handling | Integrated side handles; raised rim |
| Product weight | 8kg |
| Installation | No drilling or fastening |
| Movement | Manual sliding mat; load and bed surface affect pulling effort |
No. The DragMat sits in the load bed and does not need permanent runners or drilled fixings.
Measure the usable space with your liner and accessories fitted. This medium version needs at least 1205mm at the rear and 1415mm of length; allow enough clearance for the mat to slide.
It serves the same everyday goal of bringing cargo closer, using a manually pulled mat instead of a fixed rail mechanism. It is easy to remove when you want the space back.
250kg is the mat's maximum load. The pickup's own load limits still apply, and cargo must be secured for travel.
