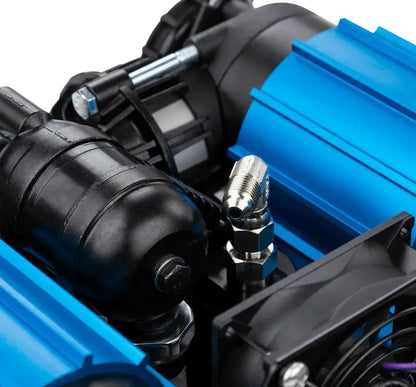

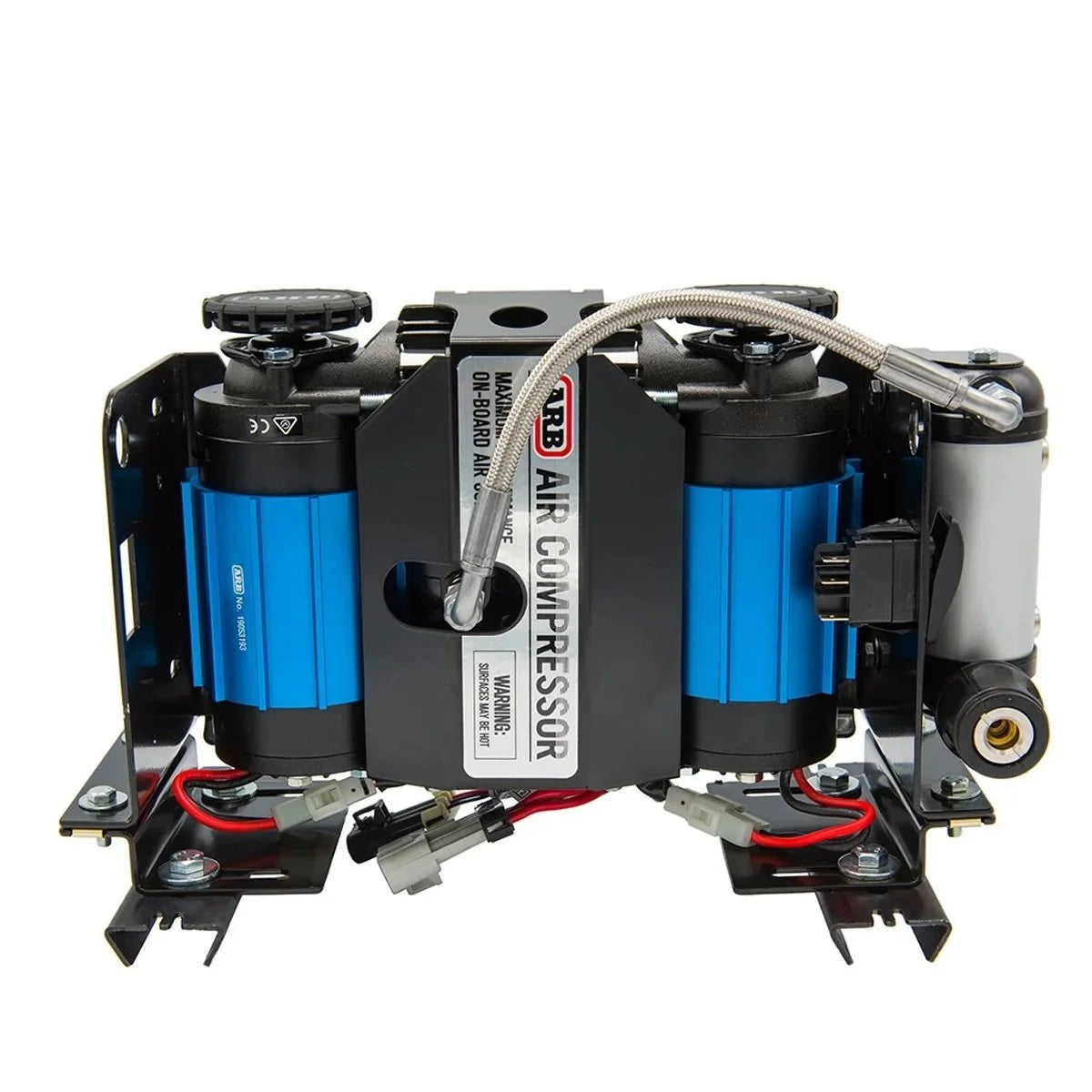

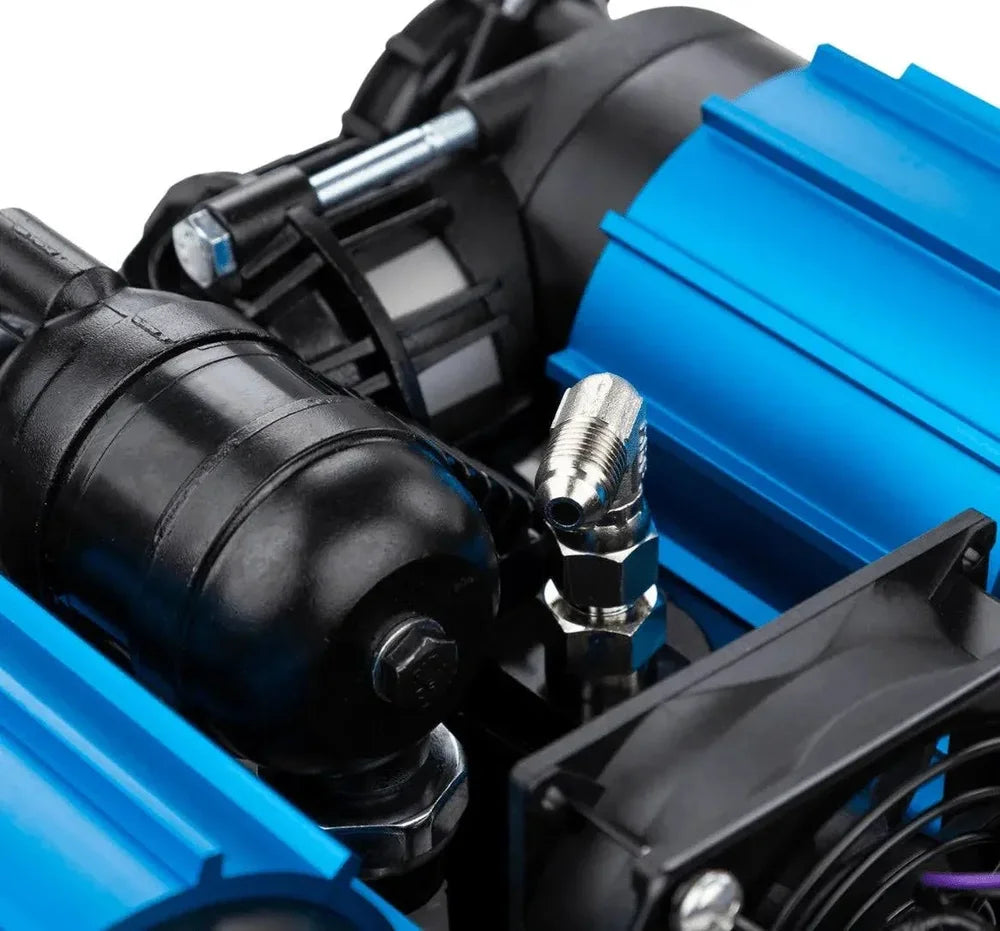

ARB Dual Compressor Kit Ford Ranger Raptor (2022-2025)

Air up immediately with the Dual Compressor Kit from ARB. No faff, everything needed for a permanent installation is included in this kit.

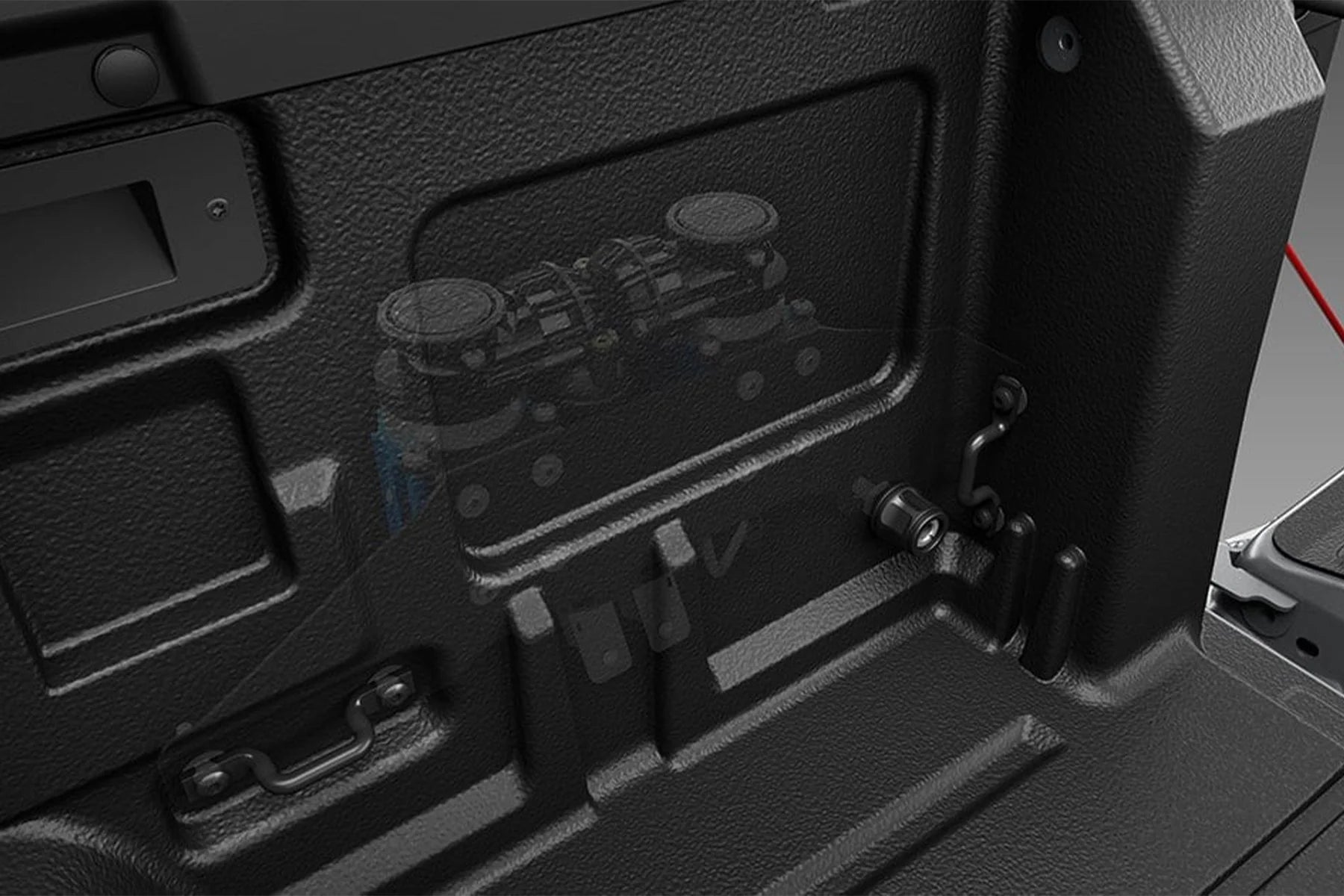

It’s been designed to fit specifically for the Ford Ranger & Raptors, 2022 and onwards. It includes everything needed for safe and secure installation in the right rear fender. Enjoy an air intake mounted on the inner side of the bed for anytime air access without wasting space.

Key Features

• Assembly time : 150 minutes
• Compressor type : Double (Brushed Twin Compressor)
• Voltage : 12V
• Maximum airflow : 174.4 l/min (high pressure); 131.8 l/min (low pressure)
• Overheat protection : Yes
• Filtered : Particle filter
• Mounting position : Right rear wing
• Gross weight : 13 kg
• Maximum pressure : 200 kPa

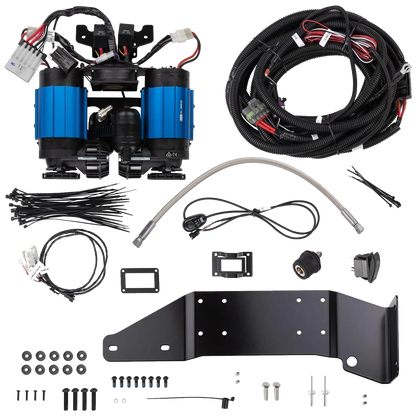

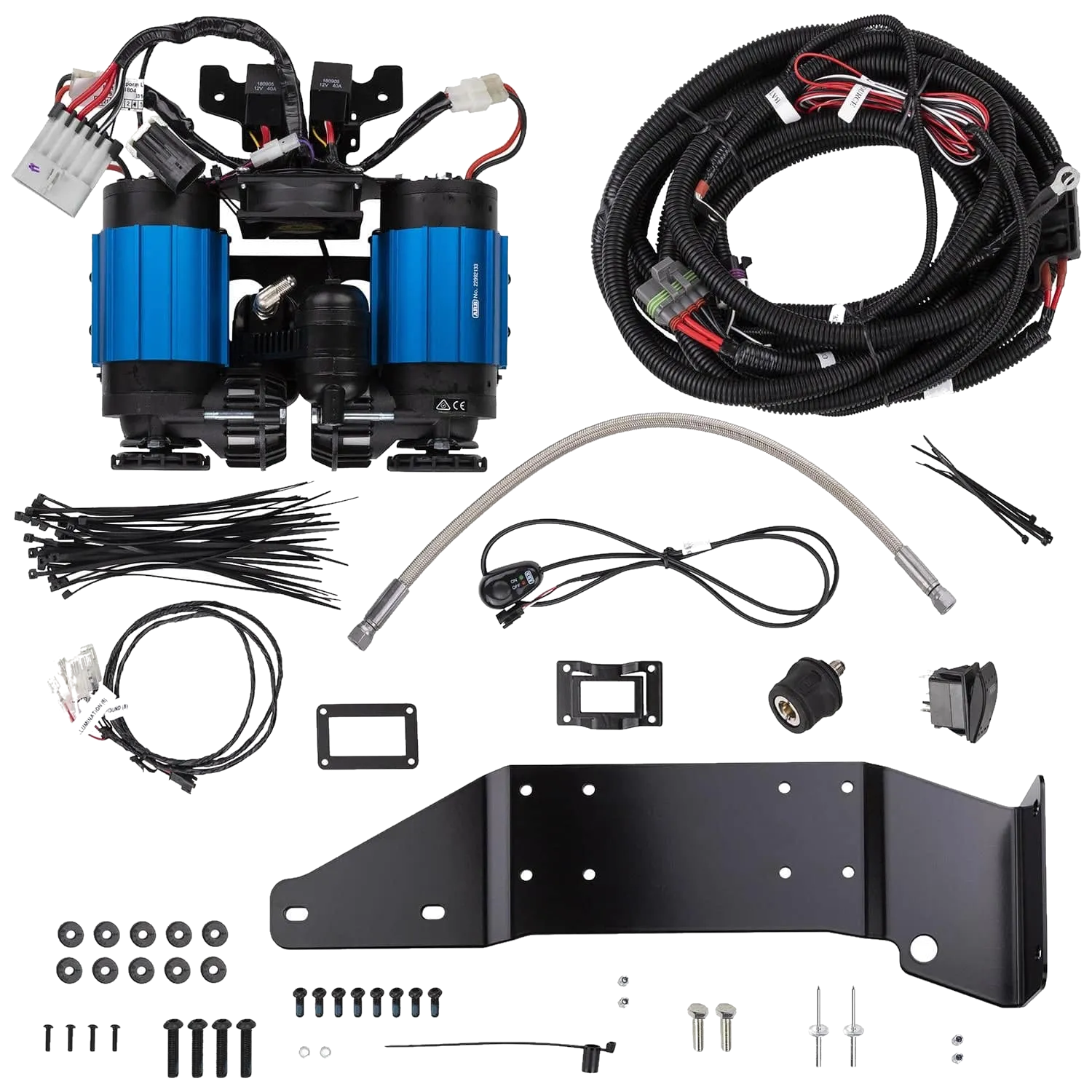

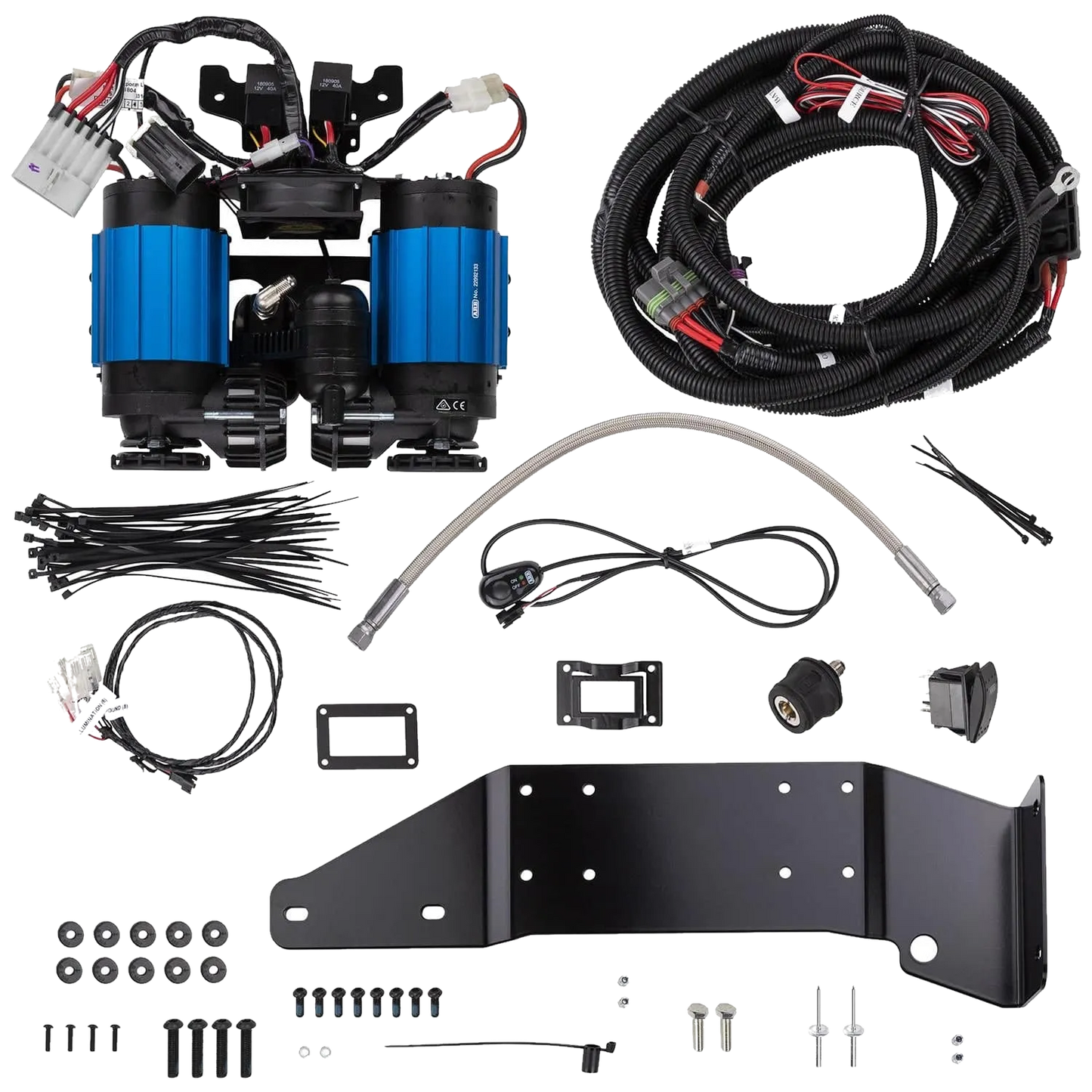

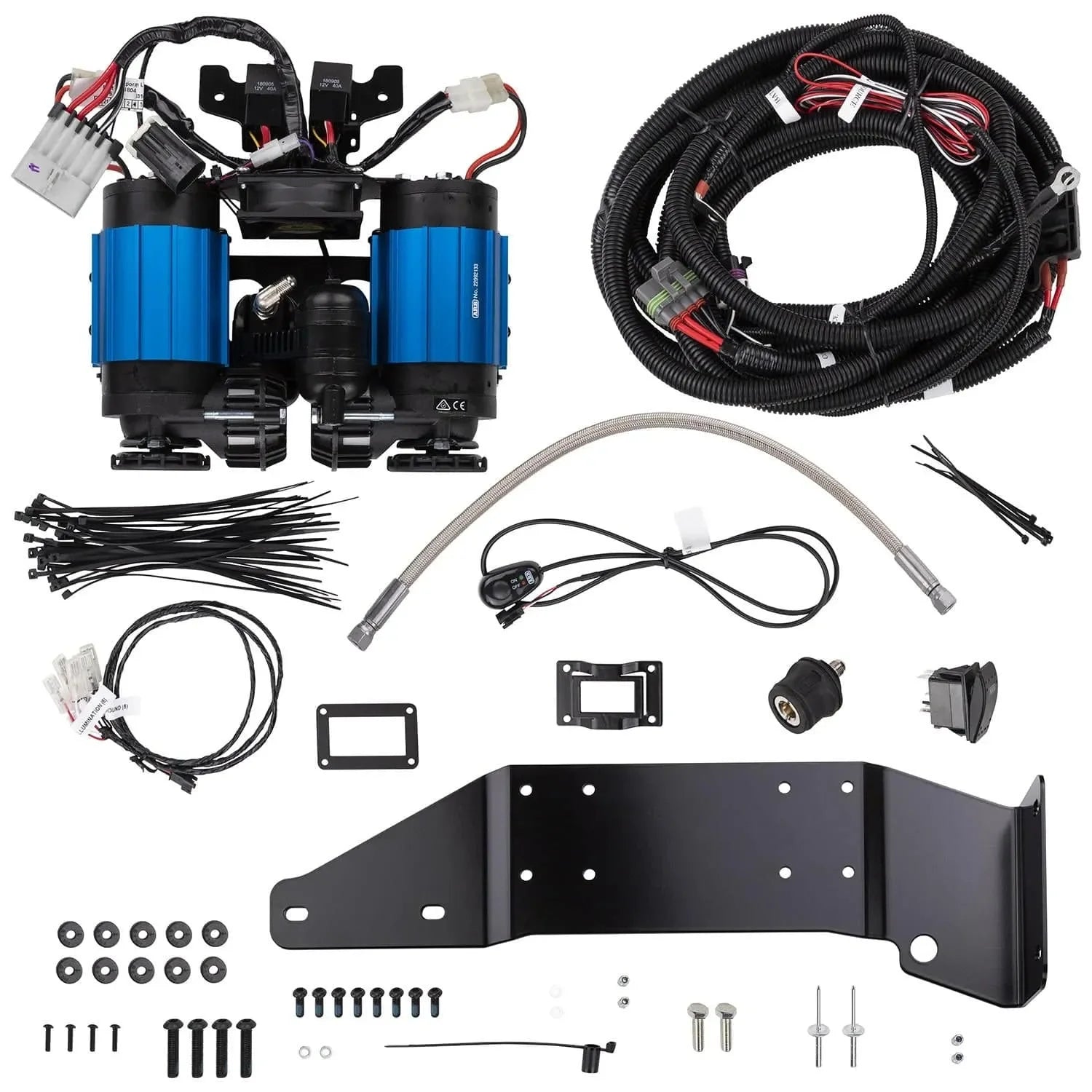

Kit Includes

• Mount
• Twin piston compressor
• Quick connectors
• Flexible hose
• Harness
• Mounting kit

Install

The installs takes about 150 minutes thanks to the provided cutting plan and assembly instructions.

Additional Information

• If the compressor is to be used to control a differential air lock, the ARB-171503 Compressor Lock Connection Kit (sold separately) is required.
• This kit does not include the hose that connects to the tyres. This is sold separately as the 7m High Temp Air Hose ARB-171301V2 or as part of the ARB Pump Up Kit ARB-171302V2.
• Allows uninterrupted air supply to tools requiring up to 85 l/min. For tools requiring more than 85 l/min, the use of a compressed air tank is recommended.
• Compressor is not designed for industrial applications.
• Installation time depends on whether the vehicle is equipped with a drawer system. It is recommended to install the compressor before installing a drawer system.
• During installation, the existing recesses in the side panels can be used as a template for drilling holes in the load compartment on vehicles with painted bed, Raptor coating for example
